نام محصول:
فیلتر آب

نام انگلیسی:

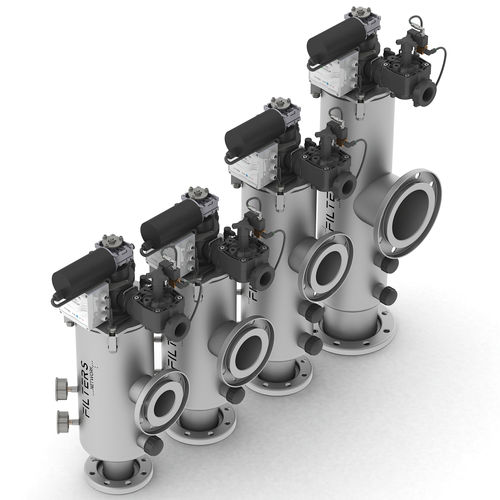

Water filter Ecoklin – EK2710

برند:
Ecoklin – EK2710

مشخصات:

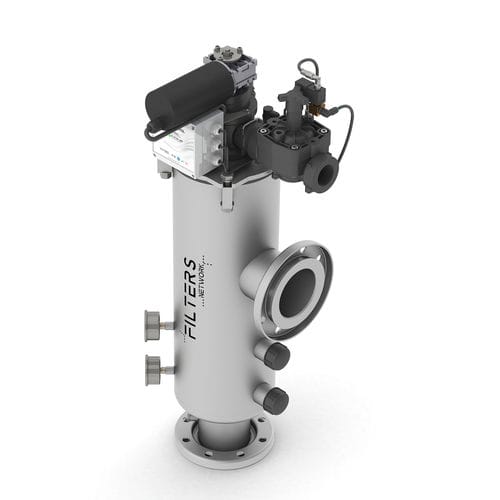

Imagine a filtration system that combines efficiency, reliability, and innovation, designed to meet the needs of long-lasting installations. This is Ecoklin, our superior quality and reliable automatic self-cleaning filter. Born from the vision of offering an uncompromising water filtration solution, Ecoklin is the result of years of research and development conducted by a team of industry experts.

Our mission is clear: “To create a self-cleaning filter that not only guarantees excellent performance but is also easy to maintain and capable of adapting to different operating conditions.”

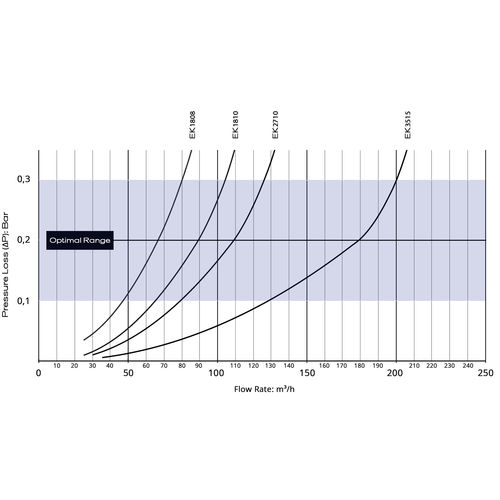

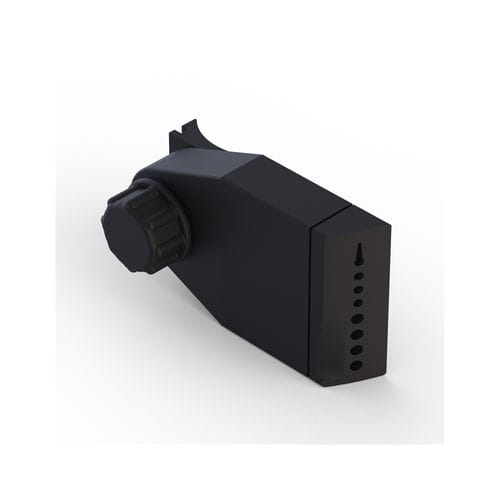

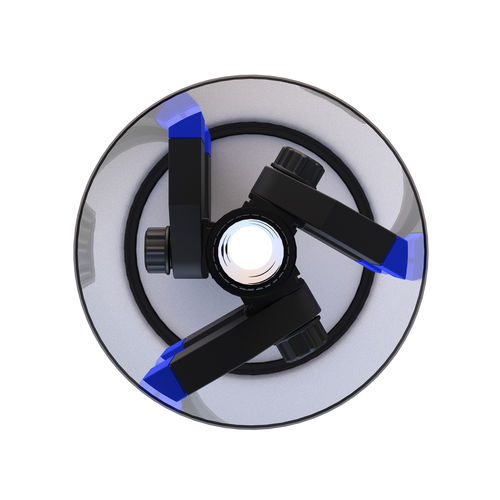

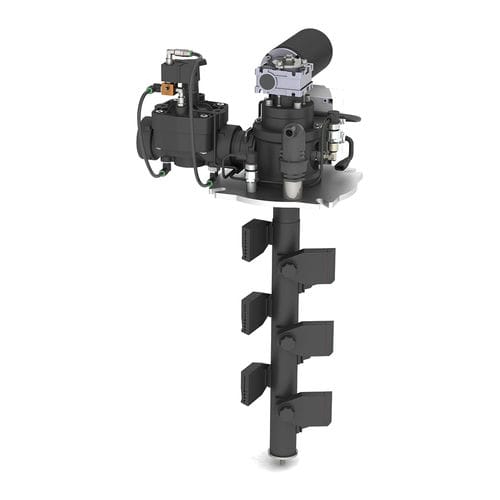

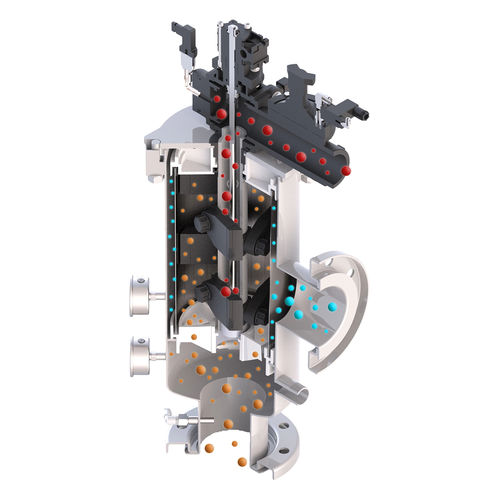

Thanks to its versatility, Ecoklin is suitable for a wide range of installations, with a filtration range from 20 to 2000 microns. The heart of Ecoklin is the advanced “suction scanner” technology, developed through years of research and experience. This innovative system allows for the rapid cleaning of the filter element without interrupting the water flow. Additionally, the differential pressure (Δp) control system, combined with the adaptive radial swing suction-scanner system, enables significant water recovery, removing suspended solids much more quickly and efficiently.

The filter element, optimized over the years, makes it a durable and long-lasting device, capable of operating even in particularly harsh conditions. Used in industrial plants, irrigation systems, aqueducts, and many other applications, Ecoklin has proven to be a reliable filter that, when applied correctly, frees installers from concerns about system shutdowns, lengthy, and laborious maintenance.

توضیحات:
Designed for
water, for rainwater

Filtration element
strainer, basket, wire mesh, microfiber

Filtration method
pressure, vacuum

Applications
fine filtration, for chemical applications, industrial, process, laboratory, for low-pressure applications, for the food industry, suction, heavy-duty, for high-pressure applications, separation, for hydraulic applications, for purifying, for heating systems, irrigation, for HVAC, for the pharmaceutical industry, for water treatment, for pipelines, for cooling systems, for industrial washing, with swing-arm, for HVAC installations, safety, for steel plant applications, coarse pre-filtration, intake, for vacuum pumps, for pump, for cutting machines, heavy-duty, discharge, for storage tanks, automotive

Material
stainless steel, varnished steel, zinc-plated

Mounting
flange

Cleaning
continuous, backwash, self-cleaning, washable, with radial scraper cleaning, with pneumatic cleaning

Fluid specification
process water, for seawater

Other characteristics
high-performance, compact, in-line, tubular, automatic, cylindrical, high-efficiency, high-efficiency, medium-pressure, low pressure, anti-corrosion, continuous-flow, modular, high-flow, vertical, self-extinguishing, horizontal, with differential pressure measurement, metal mesh, high-intensity, duplex

Operating pressure
Min.: 2 bar(29.008 psi)Max.: 8 bar(116.03 psi)3 bar(43.511 psi)

Filtration size
Min.: 20 µmMax.: 2,000 µm

Flow
Min.: 30 m³/h(1,059.44 ft³/h)Max.: 110 m³/h(3,884.613 ft³/h)

Fluid temperature
Min.: 5 °C(41 °F)Max.: 60 °C(140 °F)

Filtration surface
Min.: 1,800 cm²(279 in²)Max.: 3,500 cm²(542.5 in²)
