نام محصول:
فیلتر آب
نام انگلیسی:

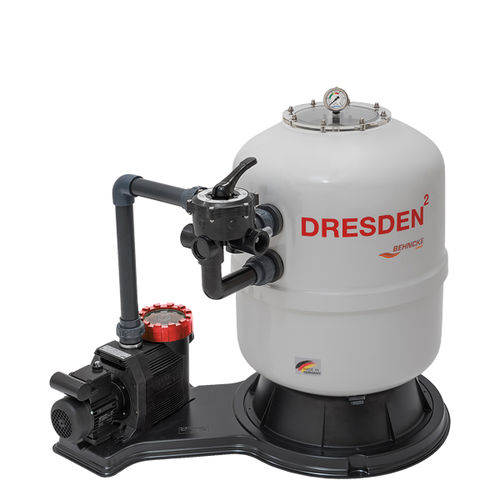

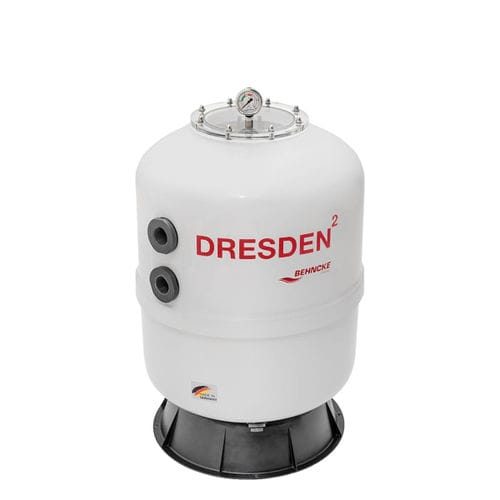

Water filter DRESDEN²
برند:
Behncke
مشخصات:
-Made of polyester resin with internal sealing – optionally available in ozone-resistant quality
-With a large (220 mm) service opening at top and a built-in nozzle cross
-Drain valve with hose coupling and pressure gauge with manual venting
-Without valve fittings, with threaded coupling
Necessary filter material
High-efficiency glass filter granulate
Silica sand for drinking water acc. to DIN EN 12904
Dimensional data
Diameter x height ø 500×910 mm | ø 600×980 mm | ø 800×1140 mm
Connection* d50 | d50 | d63
Manufacturing data
Mounted on a sound-absorbing plastic base plate with self-priming filter pump and pre-filter
توضیحات:
Designed for
water
Filtration element
plate, resin
Filtration method
pressure, sand
Applications
process
Material
plastic, polyester, glass
Mounting
threaded
Other characteristics
high-efficiency, large
Operating pressure
2.5 bar(36.259 psi)
Fluid temperature
40 °C(104 °F)
Filtration surface
Max.: 0.5 m²(5.38 ft²)Min.: 0.2 m²(2.15 ft²)
