نام محصول:
فیلتر آب
نام انگلیسی:
Water filter
برند:
Armaturenwerk Hötensleben GmbH
مشخصات:

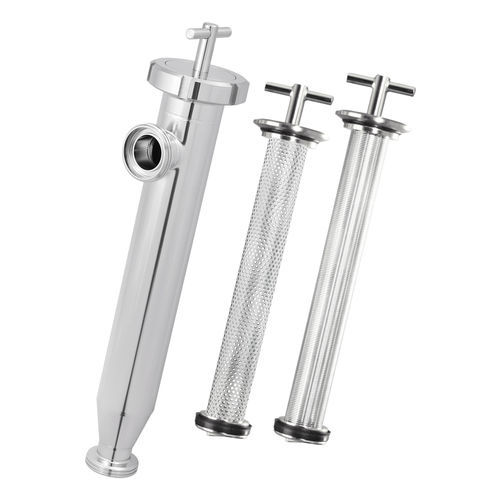

The AWH angle type strainers can be used at various places but are generally intended to be used for for coarse cleaning and filtration of liquid flows in industries such as food, chemical and pharmaceutical, in pipelines and for low – germ processes. They can process flowing media with low viscosity like water, liquid foods, steam, drinks, etc., which need high hygienic requirements.
Salient features of the AWH angle type strainers are as follows:
The direction of the flow is from the outside to the inside.
Due to the slotted tube, the flow resistance is low.
Up to 75% higher flow cross section.
The slot widths can be adjusted from 50 µm to 4 mm.
The slot widths can be easily adjusted according to the requirements by replacing the slotted strainer tubes.
High pressure resistance due the robust and strong strainer elements.
The installation needs no tools. It can be installed to DN100, with heavy-duty clamp.
DN125
The 150 feature a DIN 11851 has a grooved nut.
The strainer can be removed easily and cleaned.
توضیحات:
Designed for
water, dust
Filtration element
strainer
Other characteristics
Y
Operating pressure
6 bar, 10 bar(87.023 psi, 145.038 psi)
