نام محصول:
فن مماس TTG300
برند:
TECSYSTEM srl
نام انگلیسی:

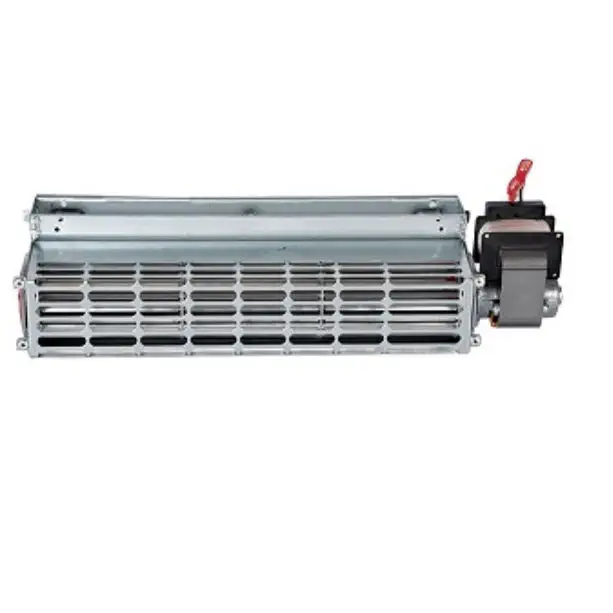

Tangential fan TTG300
مشخصات:
Configuration
tangential
Function
cooling
Supply voltage
230VAC
Other characteristics
transformer
Air flow
240 m³/h (8,475.52 ft³/h)
Diameter
60 mm (2.362 in)
Rotational speed
2,350 rpm (14,765 rad.min-1)
توضیحات:
The TTG series consists of small tangential fans that are used where a high volume of air and low noise in a limited space is required. The fans are equipped with a ø60 mm fan, length 240/300/360 mm depending on the model and with ball bearings. The motor is single-phase with 2 shielded poles, self-protected from impedance, insulation class “F”. The electrical connection is composed by radial or axial 6.3×0.8 mm male faston connectors.
