نام محصول:
فن محوری PG3N250B2EM
برند:
PBM Motor and Fan (Suzhou) Co.,Ltd
نام انگلیسی:
Axial fan PG3N250B2EM
مشخصات:
Configuration
axial
Function
cooling
Supply voltage
AC
Drive mechanism
brushless motor, EC motor
Material
steel
Air flow
1,722 m³/h (60,811.86 ft³/h)
توضیحات:
PBM focus on high quality EC fans. EC fan with DC and AC voltage input.
Certificate: CE
MOQ: 1~200 pcs based on EXF price; 200 pcs above based on FOB price;
Supply Ability: 80000 pcs per year
Payment terms: T/T; L/C
EC axial fan is driven by brushless EC motor. It uses a permanent magnet excitation and it is easy to control. An axial fan, in general, is the most commonly used as cooling fan, as well as the most cost effective. Also called “box fan” on occasion, they move air on a straight axis through the fan. This kind of fan functions best under a low pressure or low system impedance environment. With reduced fan speed the noise produced by an axial fan can be kept at a minimum.

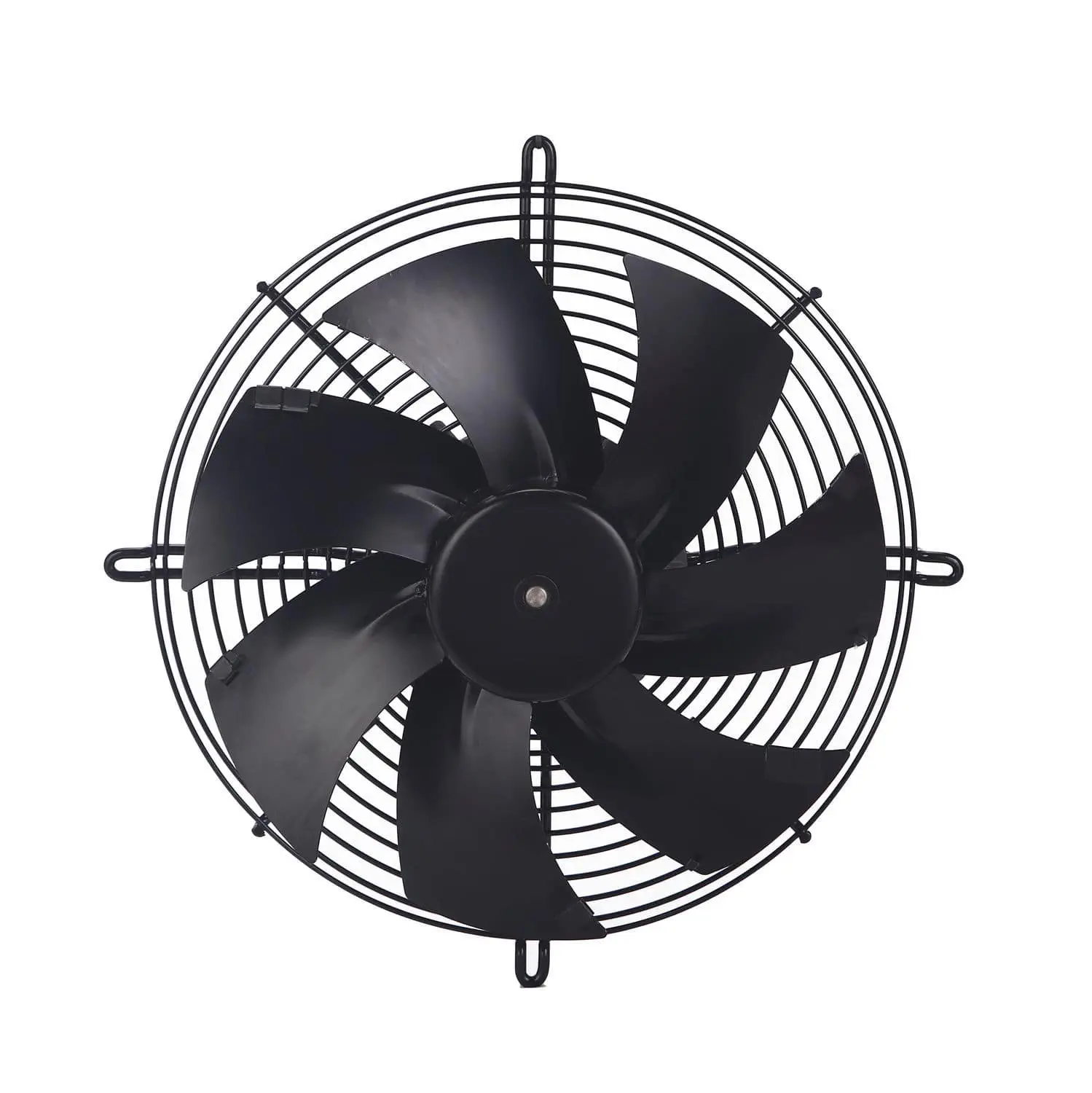

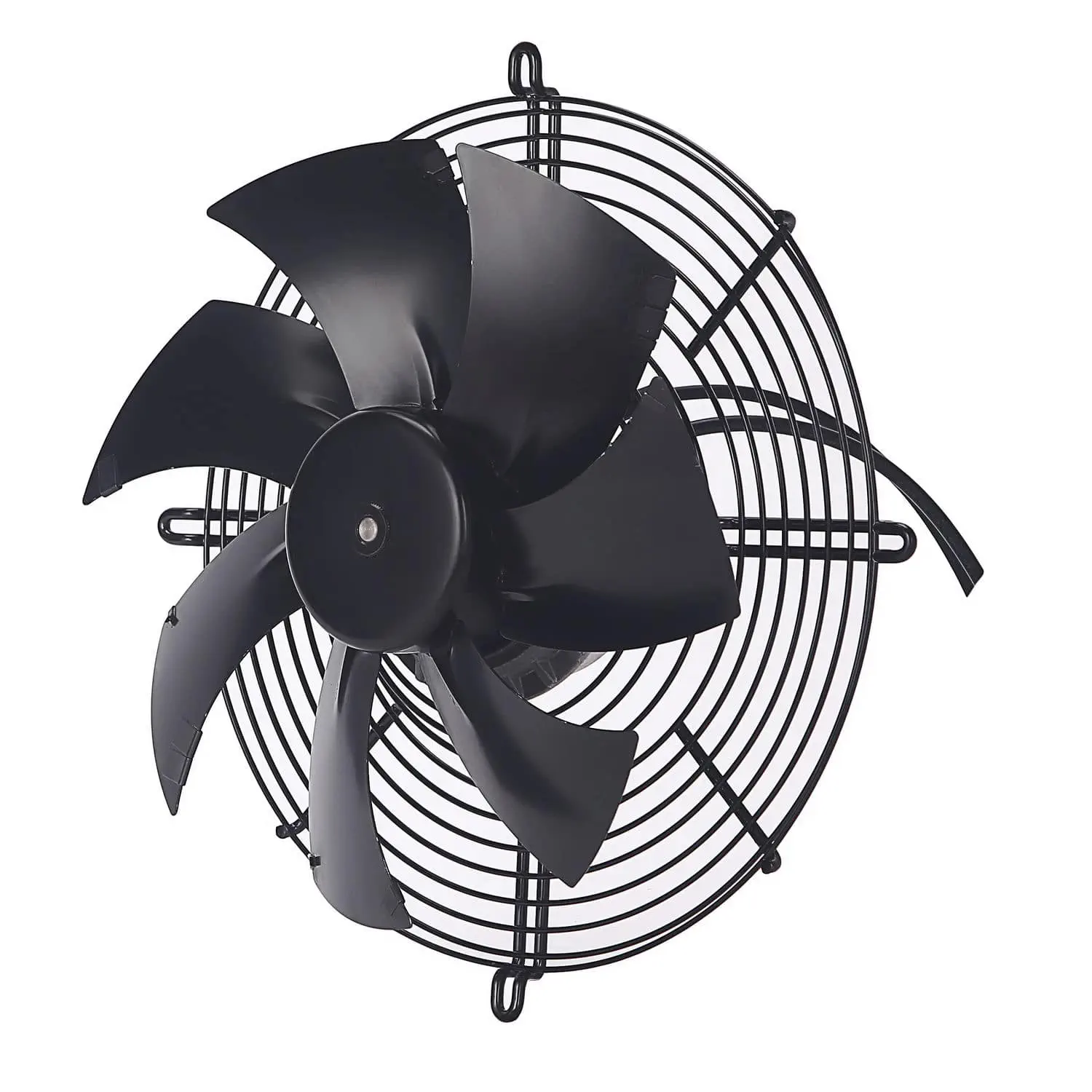

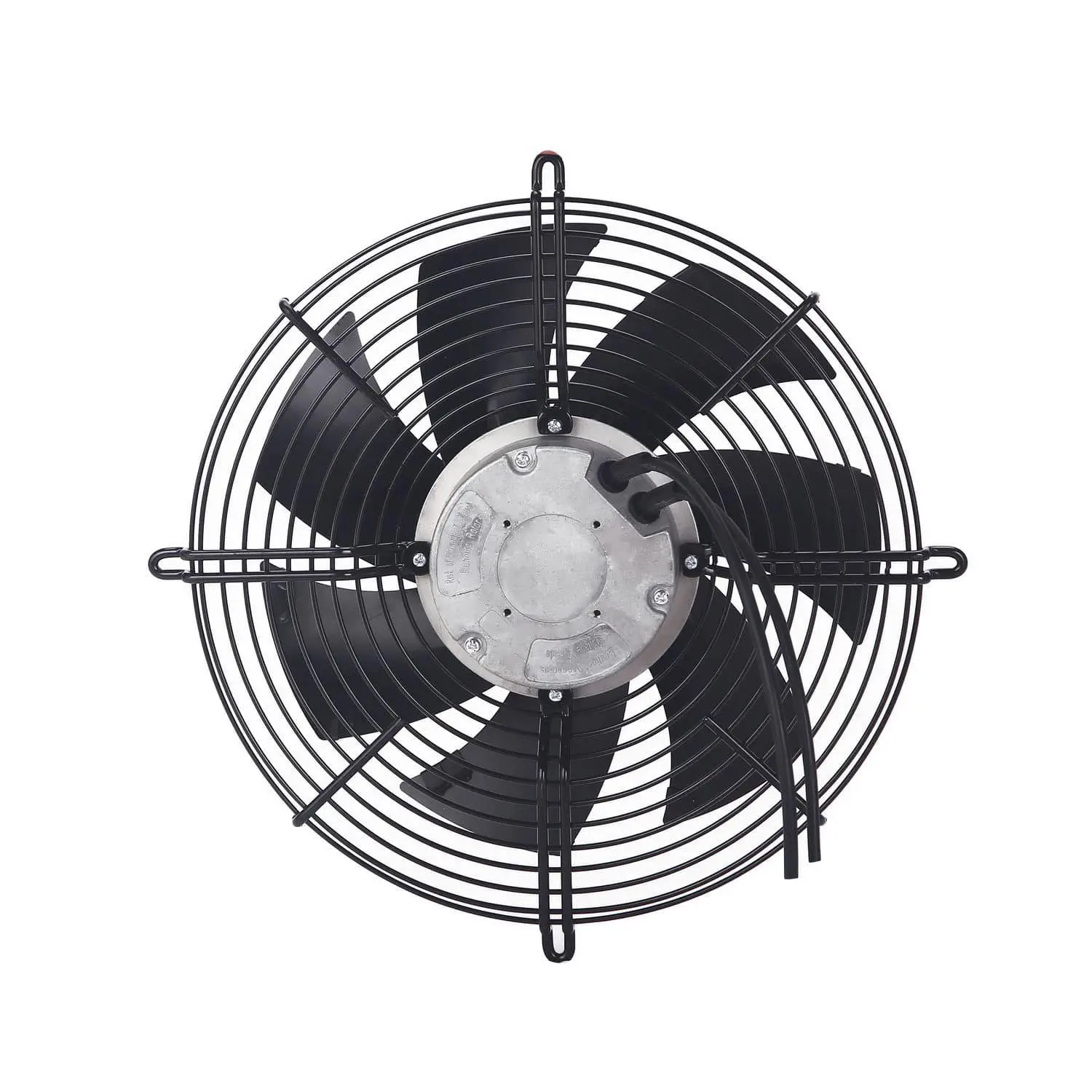

This model no. is PG3N250B2EM. It works with 230v AC voltage input. Impeller size is 250mm with a frame in size 282x124mm. Frame material is steel and coated in black.
