نام محصول:
فلنج لوله
نام انگلیسی:

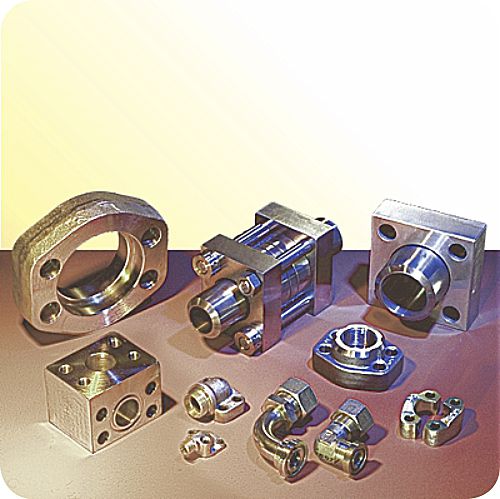

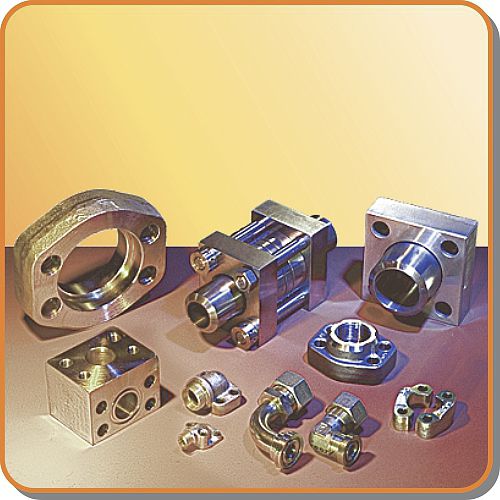

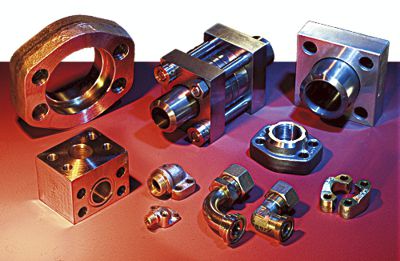

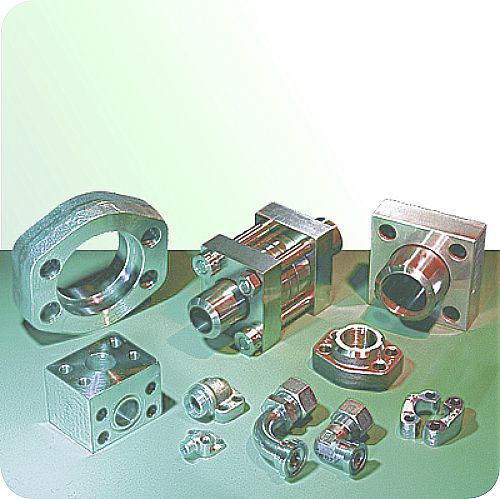

Pipe flange
برند:
jbj Techniques Limited
مشخصات:
Available for straight connection, fixed or swivel elbow with solid or split clamps allowing great flexibility of system design.
CETOP, DIN and ISO flanges for large flows and high pressures up to 400 bar complete the range. Manufactured in ASTM 105 or AISI 316L.
Large stocks ready for next day delivery.
jbj Techniques now produces and markets an innovative range of pipe flanges for fluid systems. Designed for pressures up to 450 bar, flow rates up to 20,000 l.p.m. and pipe sizes between 20 and 220 mm outside diameter.
These high pressure, high capacity flanges are specifically aimed at the steel, oil, gas and food industries where ease of maintenance features are particularly, economically attractive. Link to details for the ‘QM’ Replaceable Seal.
توضیحات:
Applications
for pipes
Material
steel
Other characteristics
fixed, elbow, threaded, weld, SAE, blind
Nominal diameter
Max.: 220 mm(8.66 in)Min.: 20 mm(0.79 in)
