نام محصول:
فلفل فلنج
نام انگلیسی:

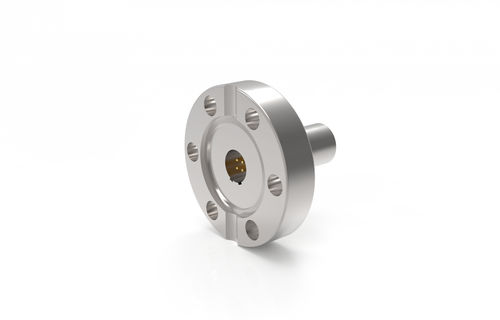

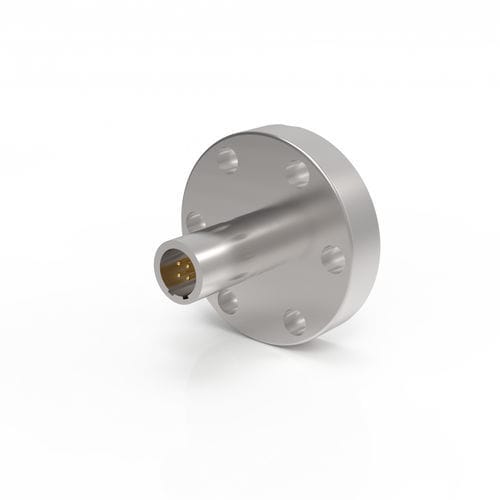

Flange feedthrough CF16-VB-0B-04
برند:
VACOM
مشخصات:
Category – Push-Pull, on CF Flange
Item description – Push-Pull Compact Power Feedthrough on flange CF16,
4 contacts, double-ended,
Contacts: Kovar gold-plated, pin-Ø 0.7 mm,
Insulation: Alumina ceramic,
Max. 500 V DC, 7 A* per pin,
Mates with “PLUG-MINI-0B-04-…” on both sides
*) Note: in most cases the current limiting element is
the cable. Please check the maximum current load of the
cables to be used.
Bakeout temperature – 350 °C
Article no. – 321879
Connection type – CF
Nominal diameter DN – 16
Leakrate – 1E-9 mbar ∙ l/s
Number of contacts – 4
Max. voltage – 0,3 kV DC
Max current per contact [A] – 7 A
Impedance – not specified
Plug connections – both sides
Material flange – Stainless Steel 304L
Material housing/weld adapter – Stainless steel 304L
Material contact(s) – Molybdenum
Magnetic – No
Min. operating temperature – -269 °C
Max. operating temperature – 350 °C
Diameter contact(s) – 0,7 mm
Outer diameter – 34 mm
Diameter – 9,4 mm
Length – 26,2 mm
Purity class – PCS
توضیحات:
Product applications
flange
