نام محصول:
غذای مس
نام انگلیسی:

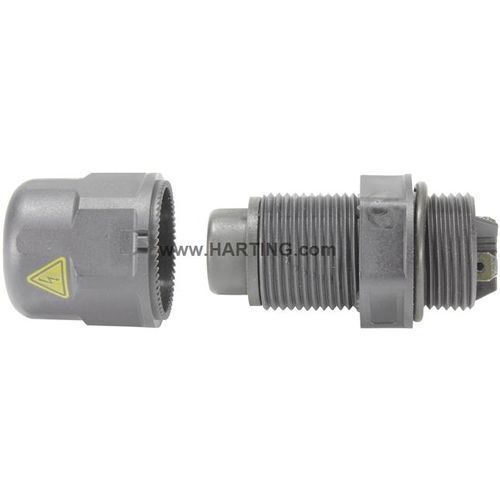

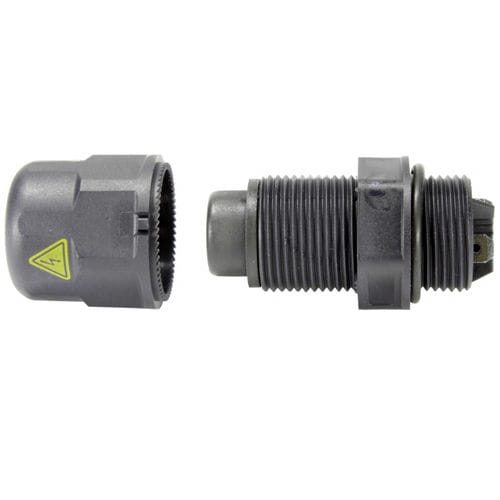

Copper feedthrough HARAX®
برند:
HARTING
مشخصات:
Category
Connectors
Series
HARAX®
Element
Panel feed through
Specification
With solder termination
for front mounting
Termination method
HARAX® connection technology
Shielding
Unshielded
Number of contacts
3
Conductor cross-section
0.75 … 1.5 mm²
Conductor cross-section
AWG 18 … AWG 16
Wire outer diameter
≤ 2.8 mm
Rated current
16 A
Rated voltage conductor-earth
230 V
Rated voltage conductor-conductor
400 V
Rated impulse voltage
4 kV
Pollution degree
3
Overvoltage category
III
Insulation resistance
>108 Ω
Contact resistance
≤ 10 mΩ
Limiting temperature
-25 … +85 °C
Degree of protection acc. to IEC 60529
IP67
Size
Pg 13.5
Cable diameter
6 … 9 mm
Isolation group
I (600 ≤ CTI)
Material (insert)
Polyamide (PA)
Thermoplastic polyurethane (TPU)
Material (contacts)
Copper alloy
Surface (contacts)
Gold plated
Material (hood/housing)
Polyamide (PA)
Thermoplastic polyurethane (TPU)
RoHS
compliant
ELV status
compliant
China RoHS
e
REACH Annex XVII substances
Not contained
REACH ANNEX XIV substances
Not contained
REACH SVHC substances
Not contained
California Proposition 65 substances
Yes
توضیحات:
Product applications
clamp, copper, panel, insert, solder
Protection level
IEC
