نام محصول:

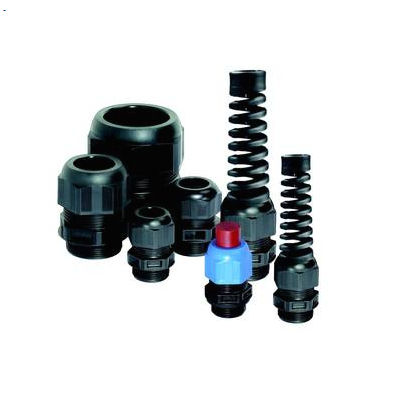

غده کابل پلی آمید
نام انگلیسی:
Polyamide cable gland 8161/7-M32-9999-MFD-04070
برند:
R. STAHL AG
مشخصات:
Product Description: Cable gland with multiple sealing insert White
Ex version: Ex e
Material: Polyamide
Armouring type: Unarmoured cable types
Thread size: M32
Thread length: 12 mm
Colour: Black
Lot size: 25
Version 2 – With plug
Version 3 – With standard thread
Highlights – For safe cable entry in Ex e and Ex i areas
Can be used at temperatures of between -60 … +75 °C, degree of protection IP68

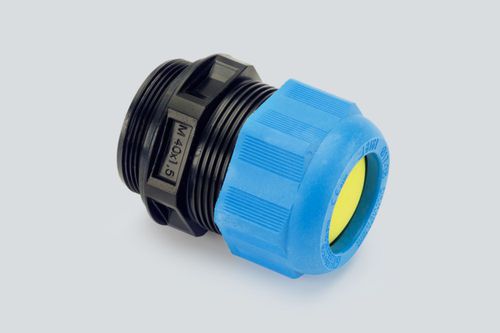

Available in Ex e and Ex i versions (Ex i version distinguished by its blue cap nut)
Suitable for cable diameters from 1 … 48 mm
Versions with multi-seal inserts
Functional Description – R. STAHL’s 8161/7 and 8161/8 series cable entries can be used to safely run cables into Ex e enclosures. They are suitable for cables between 1 to 48 mm in diameter. They are available for Ex e and Ex i circuits – the Ex i version can be distinguished by its blue cap nut. A stopping plug can be integrated to seal any cable entries that are not being used.
توضیحات:
Material
polyamide
Protection level
explosion-proof, IP68, IP66, IP54, IP65, IP55, IP64
Other characteristics
straight
Cable diameter
Max.: 48 mm(1.89 in)Min.: 1 mm(0.04 in)
Thread diameter
32 mm(1.26 in)
Clamping range
Max.: 7 mm(0.3 in)Min.: 6.3 mm(0.2 in)
Operating temperature
Max.: 75 °C(167 °F)Min.: -40 °C(-40 °F)
