نام محصول:
غده کابل پلی آمید
نام انگلیسی:

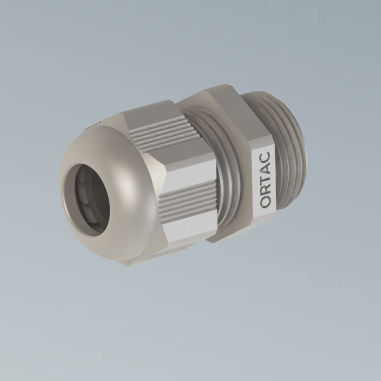

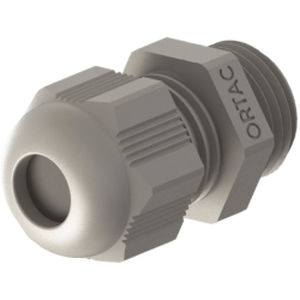

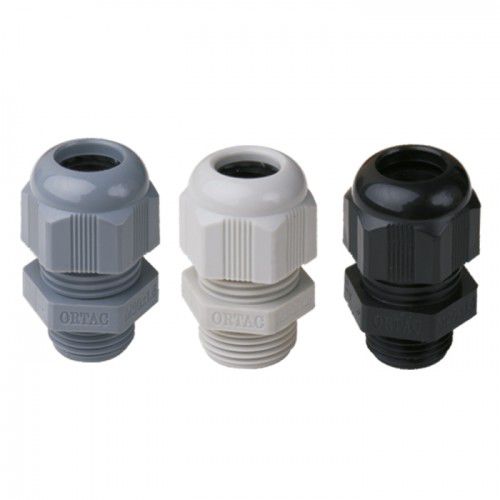

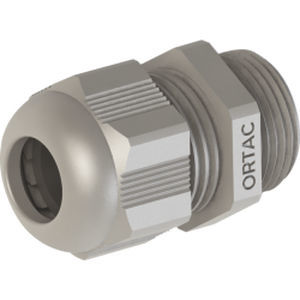

Polyamide cable gland PG
برند:
ORTAC
مشخصات:
Cap nut: Polyamide PA6 V2
Sealing ring: TPV
Gland body: Polyamide PA6 V2
Connection thread: PG (DIN 40430)
Protection class : IP68 5 bar (with O-ring)
Properties: – Antivibration protection
– UV resistance (on request)
– Easy to assemble
– Halogen free
توضیحات:
Material
polyamide
Protection level
IP68, halogen-free, UV-resistant, vibration-resistant
Other characteristics
threaded
Clamping range
Max.: 44 mm(1.7 in)Min.: 3 mm(0.1 in)
Operating temperature
Max.: 150 °C(302 °F)Min.: -30 °C(-22 °F)
