نام محصول:
غده کابل پلی آمید
نام انگلیسی:

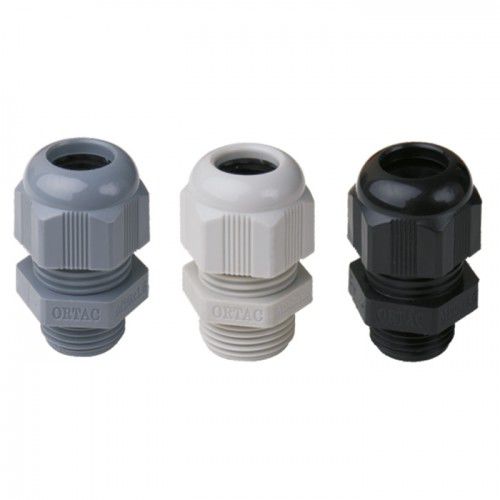

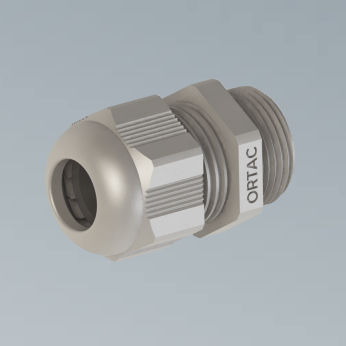

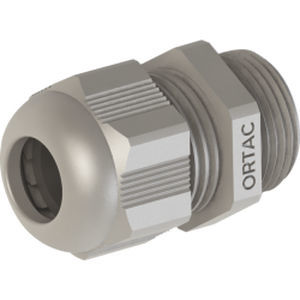

Polyamide cable gland OMRG 01
برند:
ORTAC
مشخصات:
Cap nut: Polyamide PA6 V2
Sealing ring: TPV
Gland body: Polyamide PA6 V2
Connection thread: Metric (EN 60423)
Protection class: IP68 5 bar (with O-ring)
Temperature range: -20 °C +100 °C -30 °C +150 °C
Properties:- Antivibration protection
– UV resistance (on request)
– Easy to assemble
– VDE approval (40030037)
– Halogen free
توضیحات:
Material
polyamide
Protection level
IP68, halogen-free, UV-resistant, vibration-resistant
Other characteristics
metric
Clamping range
Max.: 44 mm(1.7 in)Min.: 3 mm(0.1 in)
Operating temperature
Max.: 150 °C(302 °F)Min.: -20 °C(-4 °F)
