نام محصول:
غده کابل پلی آمید
نام انگلیسی:

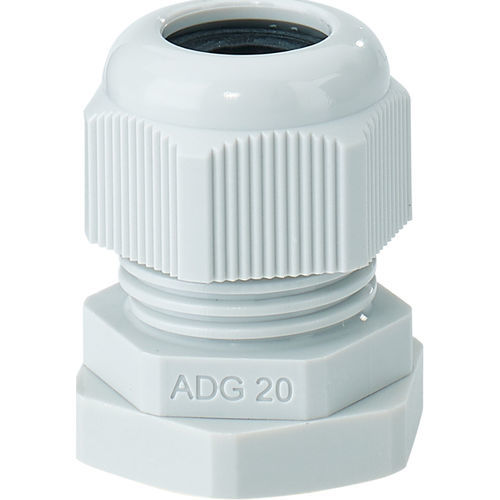

Polyamide cable gland ADG 20
برند:
Hensel
مشخصات:
Cable glands
For knockouts M20
IP degree of protection:
IP66
Tightening torque of the cap nut:
3.5 Nm
Tightening torque of the locknut:
3.5 Nm
Type of strain relief:
A
Suitable for wall thickness:
To 3 mm
Application area:
Indoor installation
Maximum ambient temperature 24 h:
35 °C
Ambient temperature:
-25 °C up to +40 °C
Relative humidity:
≤ 50 % at 40 °C, ≤ 100 % at 25 °C
Material:
Polyamide
Glow wire test according to IEC 60695-2-11:
750 °C
UL 94:
V-2
Temperature resistance:
-30 °C up to +100 °C
Halogen-free:
Yes
Silicone-free:
Yes
Maximum diameter of the bore-hole:
20.3 mm
Thread length:
8 mm
Width across flats of cable glands:
24 mm
Width across flats of nut:
27 mm
Dimension across corners of cable glands:
26.5 mm
Dimension across corners:
30.2 mm
Thread:
M20 x 1.5
Colour:
Grey, similar to RAL 7035
conforming to the standards:
DIN EN 62444
توضیحات:
Material
polyamide
Protection level
IP66
Other characteristics
strain relief, halogen-free
Cable diameter
20.3 mm(0.8 in)
