نام محصول:

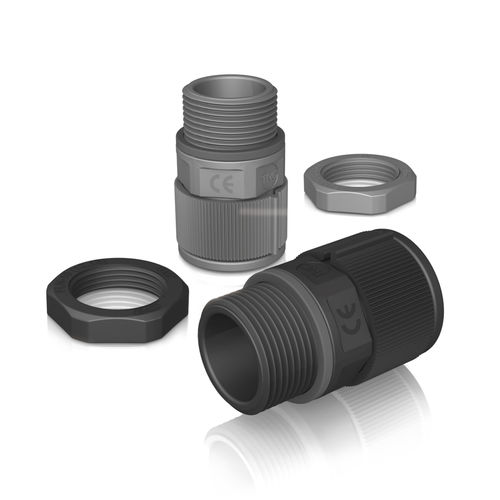

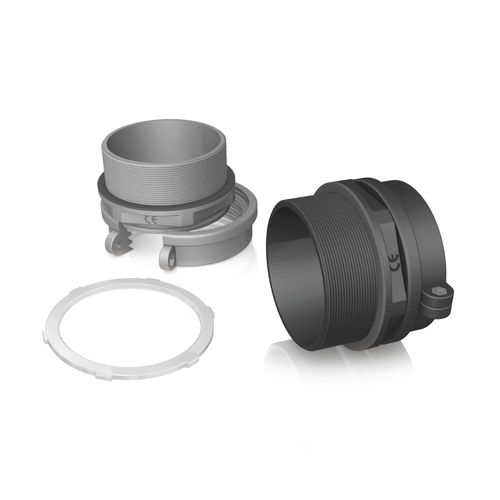

غده کابل پلی آمید
نام انگلیسی:
Polyamide cable gland TNC
برند:
CPS – Cable Protection Systems
مشخصات:
TNC Type
Material : High Quality Polyamide6
Protective : IP 67(EN 60529)
Temperature Range : -40℃ + 105℃
Short Term : up to +150℃
Self-Extinguishing : UL94-HB / Free of Halogen Phosphorous and cadmium
Color : Black & Gray
Application : Machine tool, Shipbuilding, Tramway Industrial/ Automatic Machinery Printing Machine etc. Joint box with connector
توضیحات:
Material
polyamide
Protection level
IP67
Other characteristics
straight
Cable diameter
Min.: 17 mm(0.67 in)Max.: 68 mm(2.68 in)
Thread diameter
Min.: 8 mm(0.31 in)Max.: 49.8 mm(1.96 in)
Operating temperature
Min.: -40 °C(-40 °F)Max.: 105 °C(221 °F)
