نام محصول:
غده کابل پلی آمید
نام انگلیسی:
Polyamide cable gland KDS-KV
برند:
CONTA-CLIP Verbindungstechnik GmbH
مشخصات:
KDS-KV Separable cable glands

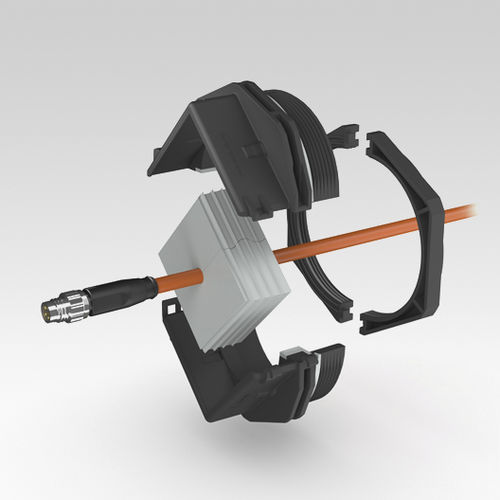

For metric break-outs from M20 to M63, CONTA-CLIP provides separable cable glands for cables with or without attached plugs. In case of maintenance or retrofitting with assembled cable harnesses, cables with diameters from 2 to 35 mm can be quickly and safely inserted into the switchgear cabinets or housings and sealed according to IP66. This separable system ensures quick and simple installation. The slitted seal has a wave-cut profile that ensures a reliable seal and a totally secure attachment. The seal is first placed around the cable and then inserted in one of the two halves of the cable gland. After inserting the seals, the two halves of the cable gland are simply snapped together. A locknut (which can also be separated) on the inside of the cabinet
توضیحات:
Material
polyamide
Protection level
IP66
Other characteristics
metric
Cable diameter
Min.: 2 mm(0.08 in)Max.: 35 mm(1.38 in)
