نام محصول:
غده کابل پلاستیکی
نام انگلیسی:

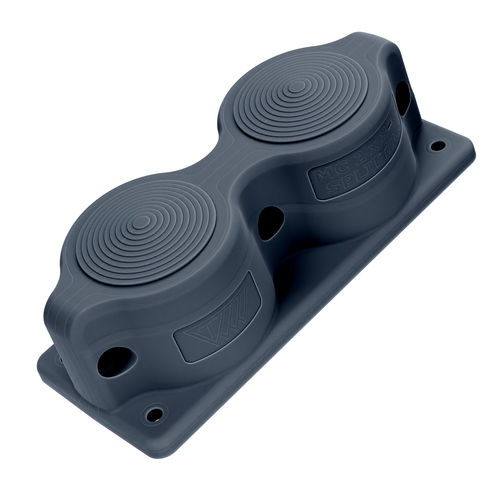

Plastic cable gland MC 2X8-67
برند:
Trelleborg Cable Entry Solutions
مشخصات:
An ideal solution for cables with pre-attached connectors
Quick assembly with a minimum of tools
Often with the cables come the connectors and very often the connectors can not be removed and re-attached. The delicate data cables, HDMI´s etc. are difficult or impossible to re-join at site. The Trelleborg Splitting Multigate is the solution that lets the cables be installed with the connectors and on top of that the cables can be changed as often as wanted. Choose Trelleborg Splitting Multigate for fast, safe and versatile installations.
توضیحات:
Material
plastic
Protection level
IP55, halogen-free, increased safety, UV-resistant, self-extinguishing, corrosion-resistant, vibration-resistant, flame-retardant, impact-resistant
Other characteristics
for marine applications, strain relief, splittable, halogen-free, multi-passage, for the chemical industry, for the food and beverage industry, for photovoltaic modules, split, for extreme conditions, screw-lock, lead-free, for high-voltage cable, for the mining industry
Cable diameter
Min.: 8 mm(0.31 in)Max.: 67 mm(2.64 in)
Clamping range
Min.: 8 mm(0.3 in)Max.: 67 mm(2.6 in)
Operating temperature
Min.: -40 °C(-40 °F)Max.: 100 °C(212 °F)
