نام محصول:
غده کابل پلاستیکی
نام انگلیسی:
Plastic cable gland 501/453/UNIV
برند:
Hawke International U.K
مشخصات:

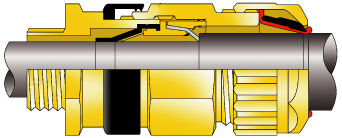

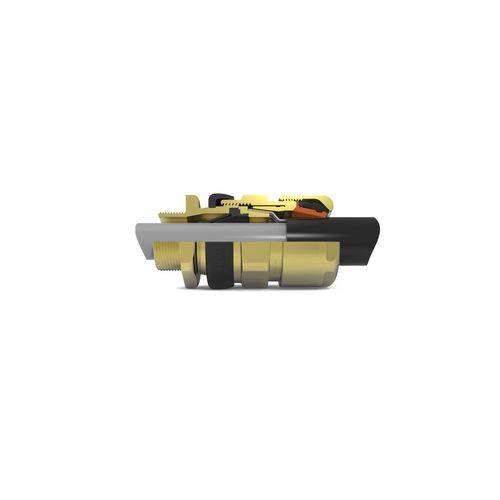

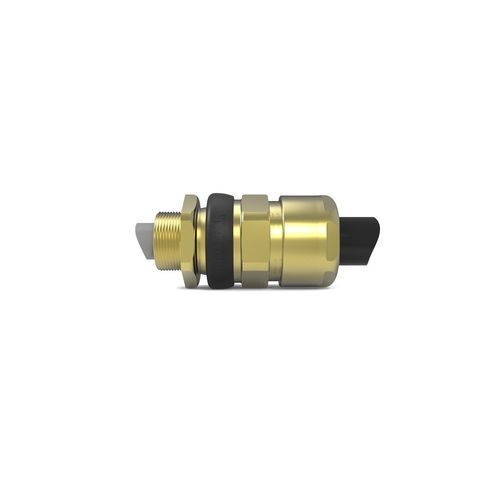

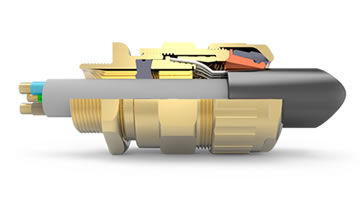

The 501/453/Universal Cable Gland is a Group II certified double seal cable gland suitable for installation in Zone 1/21 and Zone 2/22 hazardous areas. Dual Certified ATEX/IECEx (along with many more) for use in Increased Safety (Exe), Flameproof (Exd), Restricted Breathing (ExnR) and Dust (Ext) protection concepts. Integral grounding ring suitable for single wire armour ‘W’, wire braid ‘X’ and tape armour ‘Z’. Suitable for both elastomer and plastic insulated cables, and particularly for cables which exhibit ‘cold flow’ characteristics on the inner sheath. The gland also provides an elastomeric seal on the cable inner sheath, and a low smoke, zero halogen IP and retention seal onto the cable outer sheath.
Metallic body construction
Elastomeric Exd passive diaphragm seal on cable inner sheath – helping to eliminate cold flow and fully inspectable in situ
Reversible Armour Clamp – For all types of armour, braid and tape
Patented Cable Gland Tightening Guide – Helps prevent damage caused by over tightening
Unique Rear Seal – Offering ultimate sealing over an extremely wide cable acceptance range
Inspectable Deluge Seal – Offering IP66, IP67, IP68 & IP69 Ingress Protection
Available with metric or NPT entry threadforms
Application – Hazardous Areas Zone 1, Zone 21, Zone 2, Zone 22
Ingress Protection –
IP66, IP67 IP68 (30 metres for 7 days, special conditions may apply) and IP69 to IEC/EN 60529
NEMA 4X
Deluge Protection to DTS01
Material – Manufactured in Brass, Nickel Plated Brass or 316L Stainless Steel
Series – Cable Glands for Group II Hazardous Areas
توضیحات:
Material
plastic, nickel-plated brass, stainless steel, brass
Protection level
explosion-proof, IP68, IP66, IP69, IP67, increased safety, insulated
Other characteristics
metric, for armored cables, double
Operating temperature
Min.: -60 °C(-76 °F)Max.: 80 °C(176 °F)
