نام محصول:
غده کابل برنجی روکش نیکل
نام انگلیسی:

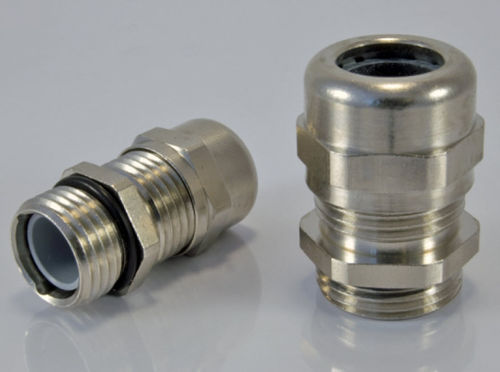

Nickel-plated brass cable gland NSTP-M series
برند:
Moltec International
مشخصات:
Configuration
Dome nut: Brass CuZn39Pb3, nickel-plated
Lamellar insert: Polyamide PA6 V-2
Sealing ring: Polychloroprene-Nitrile rubber CR/NBR
Gland body: Brass CuZn39Pb3, nickel-plated
O-ring: Nitrile rubber NBR
Connecting thread: metric as per EN 60423
Properties
Integrated anchorage, protection against twisting,wide sealing
and clamping range, easy-to-install.
Temperature range: -20°C / +100°C
Protection grade: IP68 – 5 bar
Test standard: EN 50262 / UL 514B
VDE licence: 125264
UL/CSA-File: E140310
توضیحات:
Material
nickel-plated brass
Protection level
IP68
Other characteristics
straight
Cable diameter
Max.: 42 mm(1.65 in)Min.: 3 mm(0.12 in)
Operating temperature
Max.: 100 °C(212 °F)Min.: -20 °C(-4 °F)
