نام محصول:
غده کابل برنجی روکش نیکل
نام انگلیسی:
Nickel-plated brass cable gland WADI one metric K150-1xxx-zz
برند:
Jacob GmbH
مشخصات:

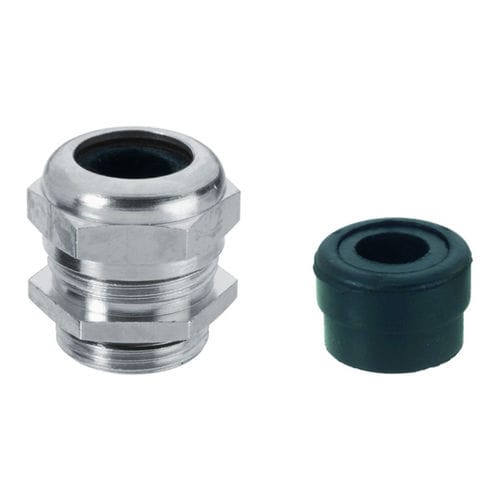

WADI one cable gland brass
The WADI one cable gland made of nickel-plated brass is the perfect cable entry solution for demanding applications.
Features:
– large-area sealing protects the cable
– integrated anchorage with high retention
– wide sealing and clamping range
– for cables from 3 to 53 mm

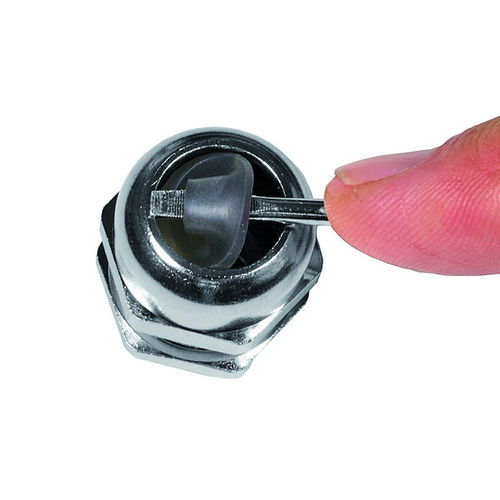

– the inner sealing ring can be removed easily for larger cables
– high UV, ozone and weather resistancy
– temperature range -40 °C / +100 °C (dynamic)

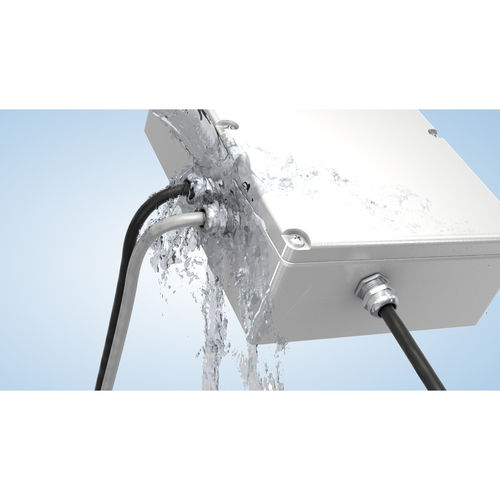

– protection grade IP 66 / IP68 – 10 bar (30 min.) / IP69
– material of sealing insert fulfils UL 94 HB
– with metric thread from M12 to M63
توضیحات:
Material
nickel-plated brass
Protection level
IP68, IP69K
Cable diameter
Min.: 3 mm(0.12 in)Max.: 53 mm(2.09 in)
Thread diameter
Min.: 12 mm(0.47 in)Max.: 63 mm(2.48 in)
Operating temperature
Min.: -40 °C(-40 °F)Max.: 100 °C(212 °F)
