نام محصول:
غده کابل برنجی روکش نیکل
نام انگلیسی:

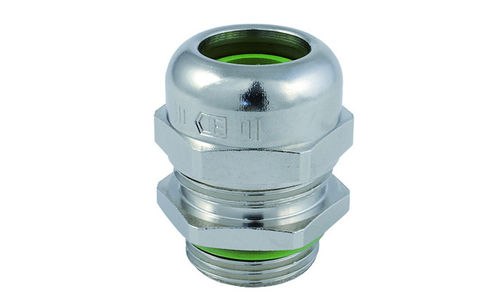

Nickel-plated brass cable gland WADI heat metric K155-1xxx-zz
برند:
Jacob GmbH
مشخصات:

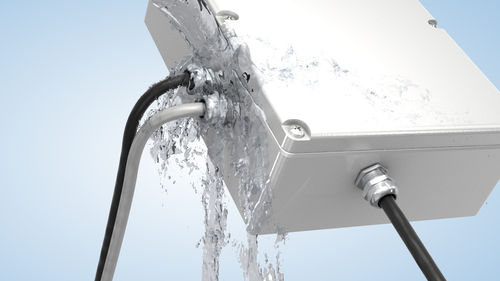

The WADI heat cable gland made of nickel-plated brass is the perfect cable entry solution for high temperature applications up to +200°C. It has also a very good resistance against many chemicals.
Features:
– large-area sealing protects the cable
– integrated anchorage with high retention
– wide sealing and clamping range
– for cables from 3 to 53 mm

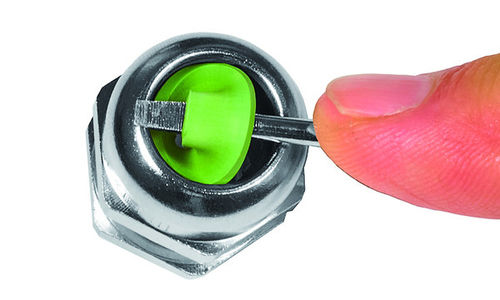

– the inner sealing ring can be removed easily for larger cables
– high UV, ozone and weather resistancy
– temperature range -40 °C / +200 °C (dynamic)
– protection grade IP 66 / IP67 / IP69
– very good resistance against many chemicals
– with metric thread from M12 to M63
توضیحات:
Material
nickel-plated brass
Protection level
IP66, IP67, IP69K
Other characteristics
high-temperature
Cable diameter
Max.: 53 mm(2.09 in)Min.: 3 mm(0.12 in)
Thread diameter
Max.: 63 mm(2.48 in)Min.: 12 mm(0.47 in)
Operating temperature
Max.: 200 °C(392 °F)Min.: -40 °C(-40 °F)
