نام محصول:
غده کابل برنجی روکش نیکل
نام انگلیسی:
Nickel-plated brass cable gland
برند:
Jacob GmbH
مشخصات:

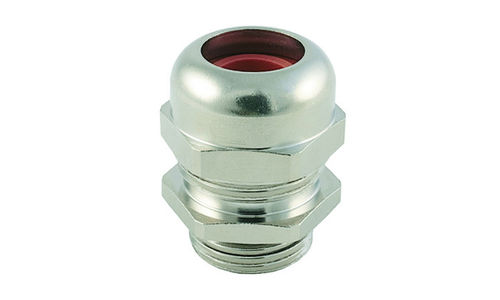

The WADI rail cable gland made of nickel-plated brass is the perfect cable entry solution for railway and low temperature applications down to -60°C.
Features:
– large-area sealing protects the cable
– integrated anchorage with high retention
– wide sealing and clamping range
– for cables from 3 to 53 mm

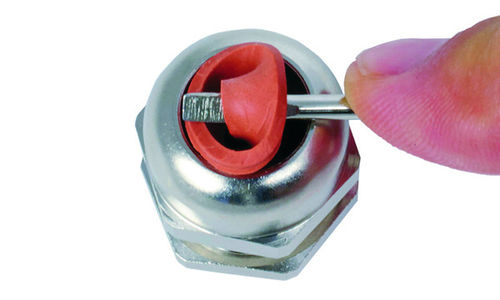

– the inner sealing ring can be removed easily for larger cables
– high UV, ozone and weather resistancy
– halogen-free
– temperature range -60 °C / +100 °C (dynamic)
– protection grade IP 66 / IP67 / IP69
– material of sealing insert fulfils superior claims on fire protection according to UL 94 V-0 and EN 45545-2, R22: HL3 / R23: HL3
– with metric thread from M12 to M63
توضیحات:
Material
nickel-plated brass
Protection level
IP66, IP67, IP69K
Other characteristics
halogen-free, for railway applications
Cable diameter
Min.: 3 mm(0.12 in)Max.: 53 mm(2.09 in)
Thread diameter
Min.: 12 mm(0.47 in)Max.: 63 mm(2.48 in)
Operating temperature
Min.: -60 °C(-76 °F)Max.: 100 °C(212 °F)
