نام محصول:
غده کابل برنجی روکش نیکل
نام انگلیسی:

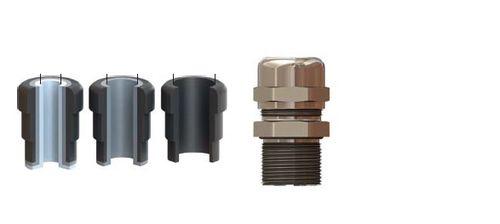

Nickel-plated brass cable gland EBU series
برند:
Atexxo Manufacturing B.V.
مشخصات:
Universal Exe and Exd Cable Glands (ATEX and IECEx)
These universal Exd/ Exd cable glands have a longer thread length >15mm than Exe cable glands. This makes them ideal to use for threated or through hole connections in combination with locknut applications.
The cable glands are triple certified, ATEX, IECEx and Marine DNV GL approval. They are suited for industrial onshore, offshore and marine applications.
The unique triple seal system makes them suitable for small and large cable diameters, without any additional loose rings. E.G. M20 cable gland for 3-12mm diameter cables.
Standard delivered in nickle plated brass finish , stainless steel of basic brass can be delivered on request.
توضیحات:
Material
nickel-plated brass, stainless steel
Protection level
explosion-proof
Other characteristics
straight
Cable diameter
Min.: 3 mm(0.12 in)Max.: 95 mm(3.74 in)
Thread diameter
Min.: 22 mm(0.87 in)Max.: 115 mm(4.53 in)
