نام محصول:
غده کابل استیل ضد زنگ
نام انگلیسی:
Stainless steel cable gland
برند:
PFLITSCH GmbH & Co. KG
مشخصات:
The extensive UNI Dicht system is synonymous in the industry with high-quality, application-specific cable glands. Users all over the world are impressed with their high ingress protection, operational reliability and durability, not to mention resistance to environmental effects and impacts. UNI Dicht meets all the current EU requirements for cable entries as well as relevant international certifications such as UL and CSA.

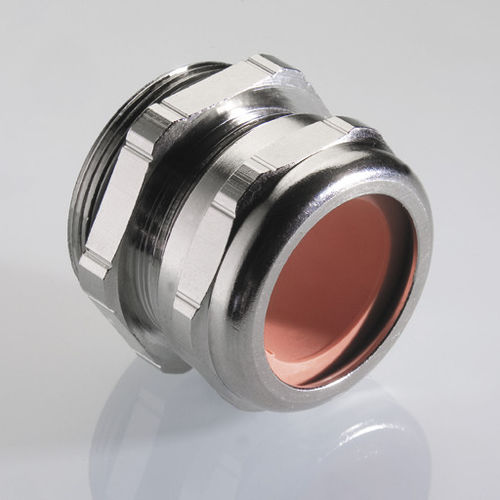

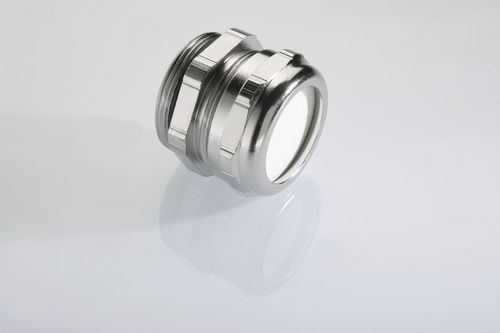

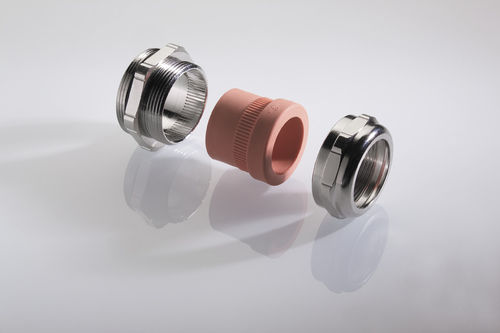

A UNI Dicht cable gland consists of the cable gland body and the appropriate sealing insert.
Your advantages:
6,000 individual parts for 20,000 application-specific cable glands
Metal and plastic variants
M4 to M120 and Pg 7 to Pg 48 as well as NPT, CTG and imperial threads
Ingress protection rating IP 68 (10 bar) and IP 69
EMC, ATEX, multiple, hose, corrugated conduit and elbow cable glands
Operating temperatures -40 °C up to +130 °C (TPE-V) and -60 °C up to +200 °C (silicone)
Reducers and expanders
توضیحات:
Material
stainless steel, brass
Protection level
IP69
Other characteristics
strain relief
Cable diameter
110 mm(4.33 in)
Operating temperature
Max.: 200 °C(392 °F)Min.: -40 °C(-40 °F)
