نام محصول:
غده کابل استیل ضد زنگ
نام انگلیسی:

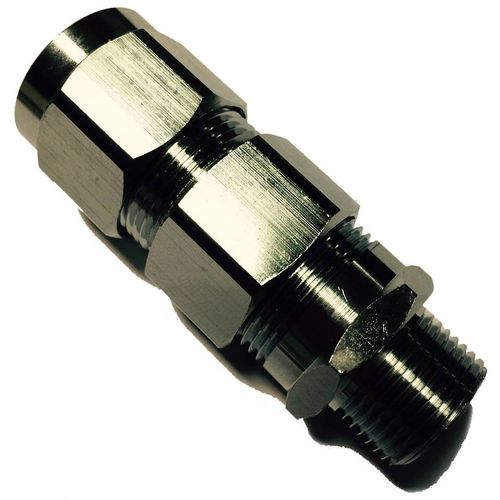

Stainless steel cable gland PAP series
برند:
KROMA MEC SRL
مشخصات:
The ATEX II2GD model is a liquid-tight strain relief cable gland that is either fabricated from brass or stainless steel. Designed for use in indoors possessing high humidity, it is an ideal cable gland for use in harsh conditions since it is susceptible to dusts, oil and rain. It is integrated with a seal on the outer cable insulation and inner cable insulation.
توضیحات:
Material
stainless steel, brass
Protection level
explosion-proof, IP66
Other characteristics
straight, threaded, for armored cables
Cable diameter
Max.: 78 mm(3.07 in)Min.: 4 mm(0.16 in)
Thread diameter
Max.: 100 mm(3.94 in)Min.: 27 mm(1.06 in)
Operating temperature
Max.: 100 °C(212 °F)Min.: -40 °C(-40 °F)
