نام محصول:
صندوق عقب کابل

نام انگلیسی:
Cabling trunking

برند:
PFLITSCH GmbH & Co. KG

مشخصات:
The standard for simple installations and tight spaces

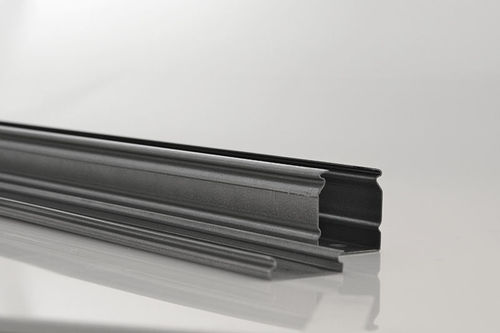

PFLITSCH’s PIK-Trunking is designed for routeing small numbers of cables. It is also ideal for use where the available installation space is scarce. It is therefore the practical alternative in these situations. With greater sheet thickness and creased side walls, PIK retains its shape under load very well.

Your advantages:

Strong construction in ten different cross sections
Comprehensive edge protection
Deburred longitudinal edges
Covers with equipotential bonding
Simple installation

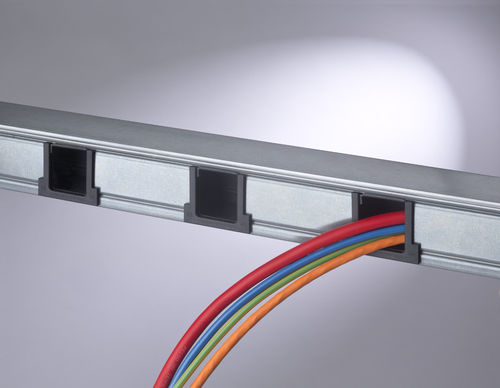

Unlike ducted systems, PIK Trunking systems can be opened over their whole length to allow cables to be simply laid in them or cable installations modified later. Its cover is easy to clip on and remains securely in place even on vertical trunking and under vibrations.

Great versatility and enclosed cable routeing

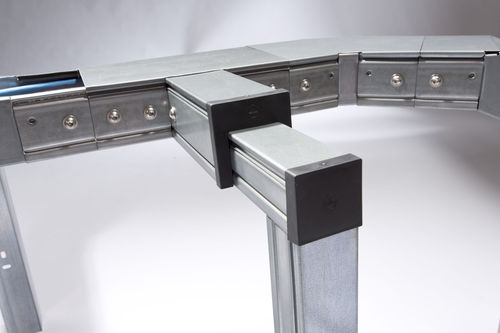

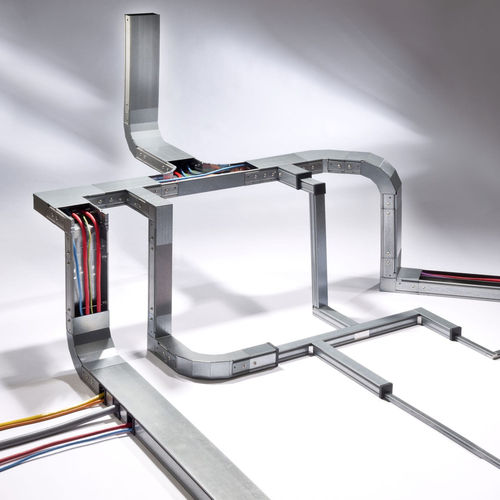

PIK-Trunking made from high-grade steel or stainless steel sheet is available in ten trunking cross sections of 15 mm x 15 mm to 200 mm x 60 mm. Bends and tees as well as accessory fittings can be used to create closed cable routeing layouts in the X/Y/Z axes – even at corners and junctions. The connections provide for equipotential bonding of all the trunking components. Separating walls keep energy and data cables apart in accordance with EMC requirements.

توضیحات:
Function
cabling

Material
steel

Configuration
rigid

Width
Max.: 200 mm(7.87 in)Min.: 15 mm(0.59 in)

Height
Max.: 60 mm(2.36 in)Min.: 15 mm(0.59 in)
