نام محصول:
صندوق عقب کابل

نام انگلیسی:
Cabling trunking

برند:
PFLITSCH GmbH & Co. KG

مشخصات:
Smart cable routeing for individual cable layouts

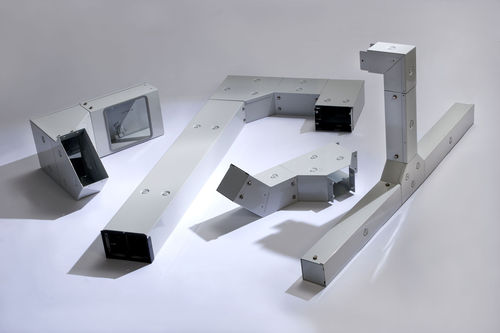

PFLITSCH has been setting the industry standard with its Industrial-Trunking. With 13 different cross sections from 50 mm x 50 mm to 600 mm x 150 mm, about 80 accessory fittings and cover variants, the system has a suitable solution for every situation. The trunking can be opened over its total length to allow preassembled cables to be placed or removed quickly and easily.

Your advantages:

Safe cable routeing for large cable volumes
Different cover variants – including hinged

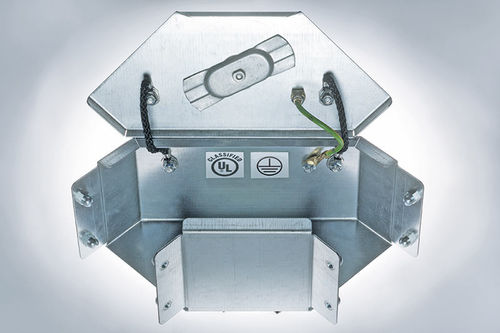

Press-fitted, self-securing domed nuts for vibration resistance and proven equipotential bonding
Comprehensive edge protection at the sheet edges, low-burr cut edges
UL and VDE tested
Fewer fastening points are required because of the high allowable load and robustness, saving you working time and materials. Industrial Trunking is UL-certified for international use. Telescopic components and adjustable elbow accessory fittings compensate for the dimensional deviations in a machine layout.

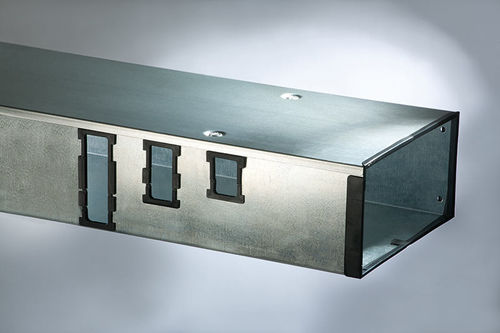

Low-burr cuts and edge protection measures
High-grade steel and stainless steel sheets are cut and prepared to a low-burr finish. Press-fitted, self-securing domed nuts reduce the amount of installation work, increase the stiffness of the trunking sections and protect the cables inside. Non-detachable plastic components provide edge protection at lateral cut-outs and trunking ends.

توضیحات:
Function
cabling

Material
steel

Configuration
rigid

Width
Max.: 600 mm(23.62 in)Min.: 50 mm(1.97 in)

Height
Max.: 150 mm(5.91 in)Min.: 50 mm(1.97 in)
