نام محصول:
صفحه ورودی کابل IP54
نام انگلیسی:

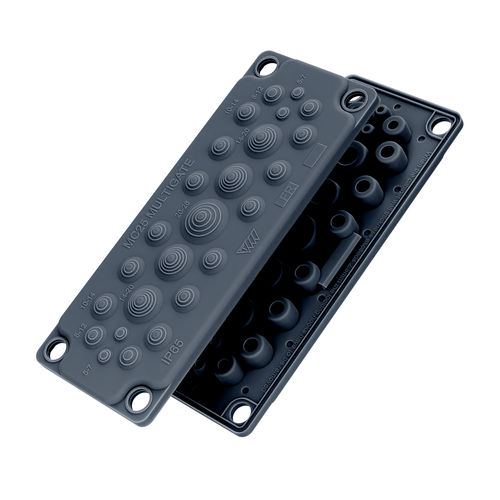

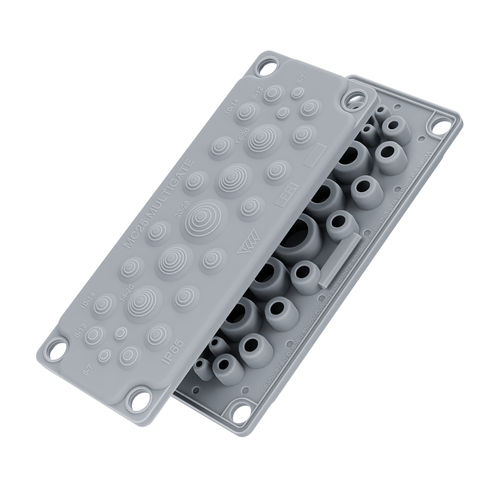

IP54 cable entry plate MC 25
برند:
Trelleborg Cable Entry Solutions
مشخصات:
EMC alternatives available
Lloyds approved alternatives for marine applications are available
Well known and proven design
Cable glands MC 3, MC 25 and MC 35 are metal reinforced cable gland plates with well known design, The design gives absolute protection against dust and spraying water from all directions. Cable glands MH 10 F, MH 16 F and MH 24 F and RMC 17 are composite reinforced cable glands with design that gives an absolute protection against dust and spraying water from all directions.
5-7 mm – – 4 pcs
8-12 mm – – 4 pcs
10-14 mm – – 12 pcs
14-20 mm – – 4 pcs
20-26 mm – – 1 pc
توضیحات:
Specifications
IP65, IP54, IP55, IP64
Applications
for electrical cabinets, for cables, for hygienic applications
Cable diameter
Max.: 26 mm(1.02 in)Min.: 5 mm(0.2 in)
