نام محصول:
شیشه دید برای کاربردهای صنعتی
نام انگلیسی:

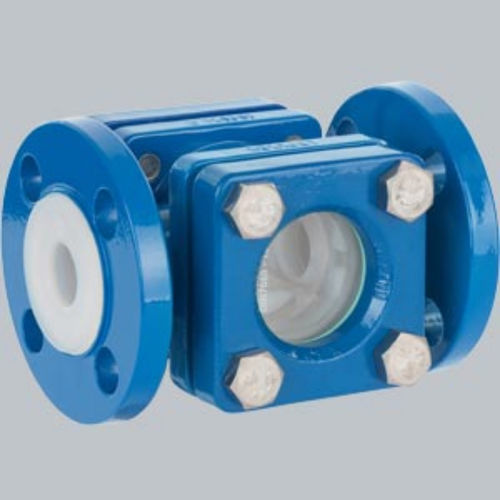

Sight glass for industrial applications SSP
برند:
Swissfluid AG
مشخصات:
Fully lined Sight Glasses as reliable flow indicators for virtually all existing process media in either liquid or even gaseous state.
Main features
• Heavy-duty, proven construction –
maintenance-free
• Horizontal or vertical installation
• For liquids, gases and steam
• Large observation opening
• Standard drip ledge indicating even lowest flow
Technical data
Face to face – EN 558-1 series 1 – ASME B16.10
Body/cover – Cast steel 1.0619 – ASTM A216 WCB
Lining – PFA, PFA-AS (conductive)
Glass plates – Borosilicate acc. to DIN 7080
Gasket (outer) – C-4400 asbestos-free
Operating conditions – (depending on material selection)
توضیحات:
Specifications
for industrial applications
DN
Max.: 150 mm(5.9 in)Min.: 15 mm(0.6 in)
Temperature
Max.: 200 °C(392 °F)Min.: -40 °C(-40 °F)
Operating pressure
Max.: 40 bar(580 psi)Min.: 0 bar(0 psi)
