نام محصول:
شیشه دید برای کاربردهای صنعتی
نام انگلیسی:

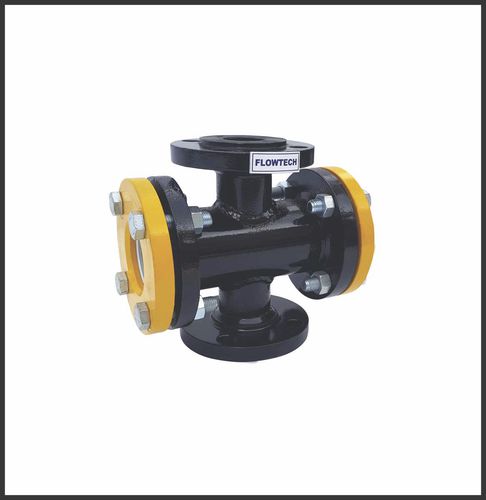

Sight glass for industrial applications FMIPL-DWSG-100
برند:
Flowtech Measuring Instruments Pvt. Ltd.
مشخصات:
Double Window Sight Glass
FEATURES:
Easy Maintenance
Available in all most all M.O.C.
Manufactured to the Highest Standard
Durable Construction
Tempered Borosilicate glass standard
Large View Area
T.F.E. [Teflon] FEP / PFA Lined Sight Glass
Fully Jacketed Double Window Type Sight Glass
Sizes Range from 15MM To 600MM
Pressure Rating PN 10
Design & Testing As Per Mfg. Standard
End Connections as per ANSI B 16.5
Tailor-Made Sight Glass
A transparent section in a pipe or tank wall for giving a visual indication of the level or flow of liquids. “FLOWTECH” Manufactures Industrial Sight Flow Indicator (Sight Glasses) in Two Types.
Full View Type
Sight Glass (Sight Flow indicators) is used for monitoring flow in pipelines for a wide range of applications. Sight Glass suitable for various rugged industrial applications. These Sight Flow Indicators are bi-directional type and easy to install in any orientation. Sight Glass (Sight Flow Indicators) provides a quick, reliable and economical way to verify the flow of liquids through industrial process pipe lines. Sight Glass available with different length of glass from 4 (100mm) to 8 (200mm) long.
Double Window Type
Its Cast Construction & Fabricated design to meet an industrial requirement of various applications to inspect the process fluid. In Double Window Sight Glass (Sight Flow Indicator) Contains Two Toughened Glasses Mounted opposite to each other. Double Window Type Sight Glass (Sight Flow Indicator) available with various thickness and diameter of glass to suit various applications respects to fluid pressure and temperature.
توضیحات:
Specifications
for industrial applications, stainless steel, borosilicate glass, brass, PTFE-lined
DN
Max.: 500 mm(19.7 in)Min.: 15 mm(0.6 in)
Temperature
Max.: 50 °C(122 °F)Min.: 0 °C(32 °F)
Operating pressure
Max.: 100 bar(1,450 psi)Min.: 0 bar(0 psi)
