نام محصول:

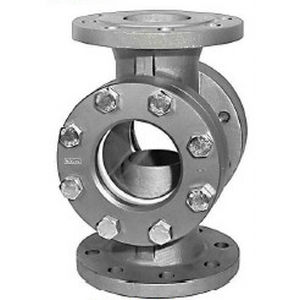

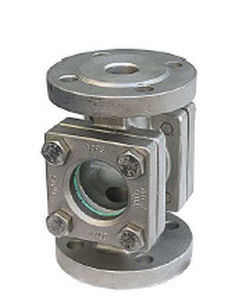

شیشه دید از جنس استنلس استیل
نام انگلیسی:
Stainless steel sight glass Bauform 880 series
برند:
NORIS Armaturen Burkenstein GmbH & Co. KG
مشخصات:
Application:
The flow indicators are used for optical control of fluids
and gases, for horizontal and vertical pipe lines.
Operating conditions:
Working pressure: 16 / 25 / 40 bar
Working temperature: 150X or 280X
Installation:
Optional; Take care of flow direction
Options:
with AN SI-flanges
with Butt weld ends
with Spinner or Flap
with Heating jacket
with Sight glass light – fittings
Materials:
Cast Iron GG 25 ( EN-GJL-250 ) max 16 bar
Cast Steel GS-C 25 ( 1.0619 / GP240GH }
Stainless Steel VVN 1.4408
توضیحات:
Specifications
stainless steel, flange
DN
Min.: 15 mm(0.6 in)Max.: 200 mm(7.9 in)
Temperature
150 °C, 280 °C(302 °F, 536 °F)
Operating pressure
16 bar, 25 bar, 40 bar(232 psi, 363 psi, 580 psi)
