نام محصول:
شیشه دید از جنس استنلس استیل
نام انگلیسی:
Stainless steel sight glass View-X™
برند:
Dynamic Air
مشخصات:

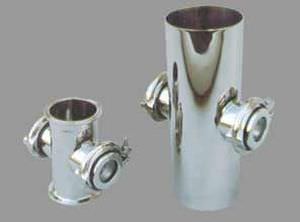

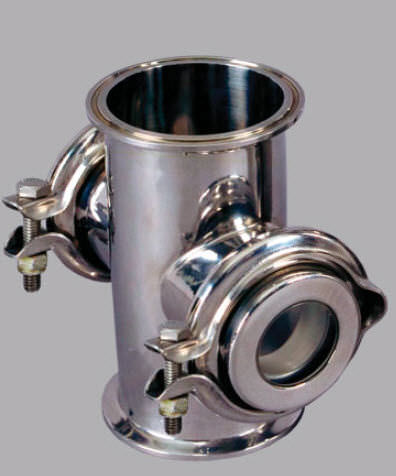

The Dynamic Air View-X sight tube allows easy viewing of any type of material being conveyed in a pneumatic conveying system. It is designed with double viewing ports to allow more light for better viewing.
The viewing ports are constructed of clear Plexiglas to make them almost indestructible and very safe. They are contoured to the inside diameter of the conveying line so they will not affect the normal flow pattern of the material being conveyed. The quick-opening clasp, which surrounds each viewing port, assures ease in disassembly.
The sight tube is available in any conveying line size and can be constructed of mild steel, stainless steel or aluminum. It is designed to working pressures up to 150 PSIG and temperatures up to 120 degrees Fahrenheit.
Simple Installation
Installation is simple. The View-X sight tube fits in any part of the conveying line in the same manner as the normal conveying piping. It is available with plain, ferruled or flanged ends to assure a custom fit to any conveying system.
Features
Durable Plexiglas double viewports
Quick and easy disassembly
Available in any size of conveying line piping
Available with plain, ferruled or flanged ends
Pressure to 150 PSIG
Temperatures to 120 degrees Fahrenheit
Full vacuum
Optional food grade construction
توضیحات:
Specifications
stainless steel, for pneumatic conveying
Temperature
120 °F(49 °C)
Operating pressure
150 psi
