نام محصول:

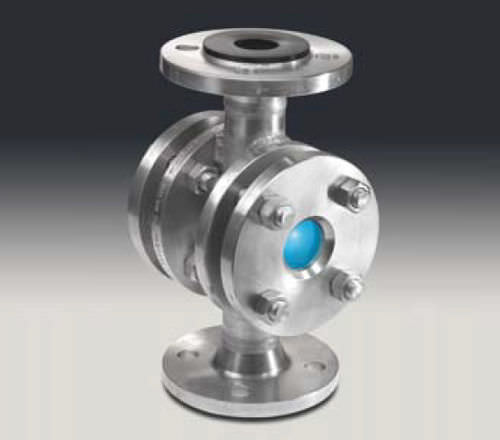

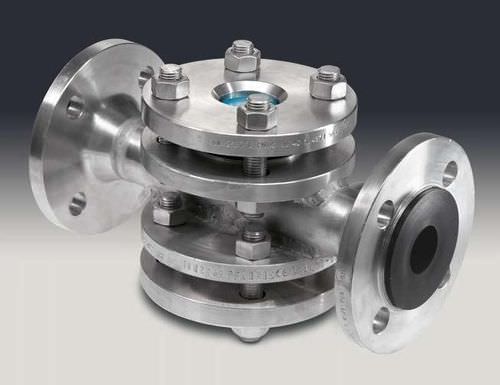

شیشه دید از جنس استنلس استیل
نام انگلیسی:
Stainless steel sight glass
برند:
Baum Kunststoffe GmbH
مشخصات:
Lining-Materials:
* up to diameter nominal DN 100: PFA (virgin or conductive)
* ab Nennweite DN 125: PTFE (virgin or conductive)
* up to diameter nominal DN 300: PP
Different lining thicknesses and flange designs on request.

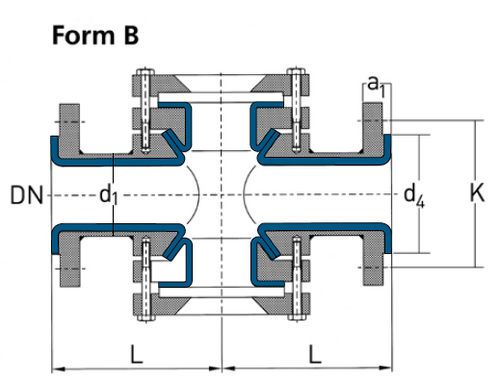

Flange design:
* fix-fix
* fix-loose
* loose-loose
Other pressure rates:
* PN 16
* PN 25
* PN 40
Material: carbon steel and stainless steel special features: earthing studs,
earthing lugs, flange stopper, final painting.
توضیحات:
Specifications
stainless steel
DN
Min.: 25 mm(1 in)Max.: 400 mm(15.7 in)
Operating pressure
40 bar(580 psi)
