نام محصول:

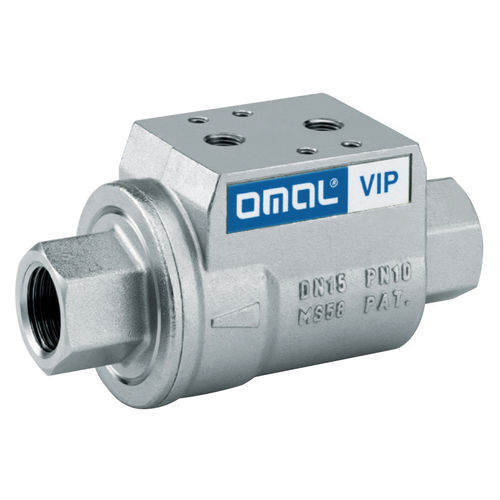

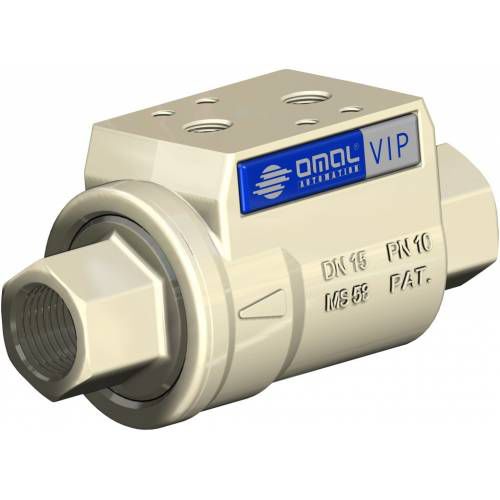

شیر کواکسیال
نام انگلیسی:
Coaxial valve VIP
برند:
OMAL Spa
مشخصات:

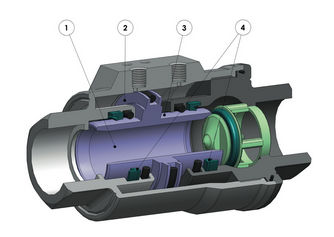

1. Internal diameter equal to the diameter of the pipe
High flow capacity
2. Pneumatic actuator integrated in the valve
Space saving (-60%) and reduced costs compared to an automated valve
3. Piston with chemical nickel plating
Lower wear of the seals due to the increase of the surface hardness (400 -550 HV)
4. Lip seals
Less wear of the seal comparing with an o-ring
Several seal materials available
Maximum compatibility with different types of fluids depending by the seals used
No external moving parts
Maximum safety
Easy mounting
Long life time granted
Lifetime 10 times longer than a ball valve with with reduced maintenance costs
100% in- house manufacturing process technology
Maximum control and accuracy in all the stages of the manufacturing process
Less Air consumption
80% less air consumption compared to an actuated valve with SR pneumatic actuator therefore less load on the compressor or the possibility of using a smaller compressor’s size.
ATEX Certificate
Installation is allowed in a potential explosive environment
PED Certificate
Full compliance with European Safety Standards for Pressure Equipment
توضیحات:
Type
piston
Operation
pneumatically-operated
Function
for control, blocking
Media
for gas, for air, for compressed air, for oxygen, for inert gases
Body$
screw-in
Applications
for the chemical industry, for industrial applications, for automobiles, turbine, for the food industry, process, power line, for oil industry applications, for the pharmaceutical industry, for the gas industry, for the paper industry, for machine tools, for water treatment, for the mining industry, for shipbuilding, for marine applications
Material$
brass, stainless steel
Other characteristics
normally closed, double-acting, normally open, coaxial, ATEX
DN
Min.: 10 mm(0.394 in)Max.: 50 mm(1.969 in)
Pressure
Min.: 0 bar(0 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 150 °C(302 °F)
