نام محصول:
شیر چک گاز
نام انگلیسی:

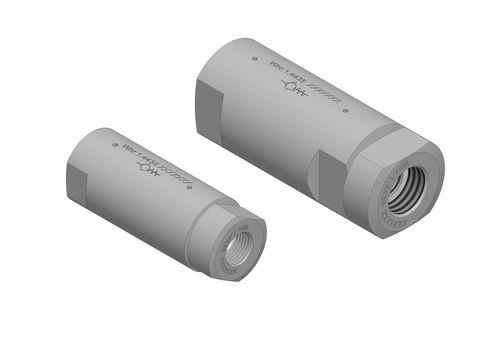

Gas check valve HyCheckValve
برند:
ALPHA AUTOMATISMES Sarl
مشخصات:
Available in two different nominal sizes, this check valve protects upstream equipment from possible damage caused by back pressure and prevents contamination.
Thanks to its compact and space-saving design, the HyCheckValve can be ideally integrated into hydrogen refuelling stations.
It is compatible with the HyValve range of valves, allowing you to benefit from the synergy effects of a single source.
P or peace of mind, our hydrogen valves have been designed to provide long periods of operation and ease of maintenance and control
Our HyCheckValve range will convince you with its high repeatability, maximum safety and outstanding reliability.
توضیحات:
Fluid
for gas, gas, for hydrogen
Body
threaded, screw-in, miniature
Applications
high-pressure, safety, for industrial applications, for the gas industry, for explosive atmospheres
Material
stainless steel
Other characteristics
compact, in-line, horizontal, for high flow rates, top-mounted
DN
Max.: 8 mm(0.315 in)Min.: 6 mm(0.236 in)
Pressure
Max.: 1,000 bar(14,503.8 psi)Min.: 0 bar(0 psi)
Temperature
Max.: 85 °C(185 °F)Min.: -50 °C(-58 °F)
Flow rate
Max.: 2.66 us gal/min(10.07 l/min)Min.: 1.16 us gal/min(4.39 l/min)
