نام محصول:
شیر پیستون
نام انگلیسی:

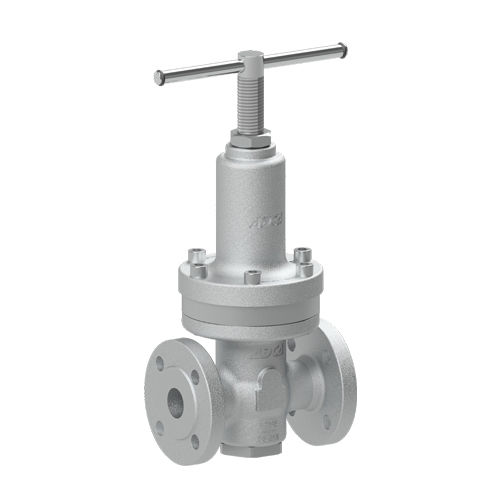

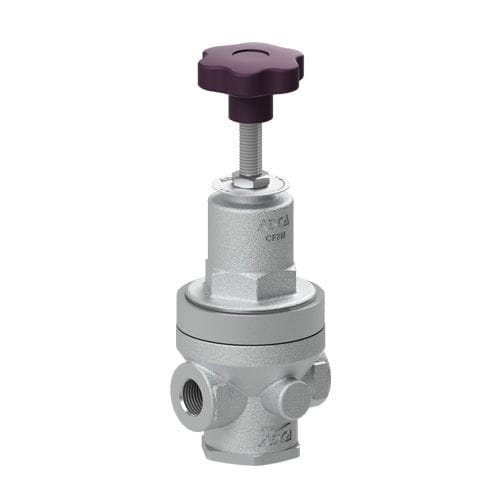

Piston valve PRV31SS
برند:
VALSTEAM ADCA Engineering S.A.
مشخصات:

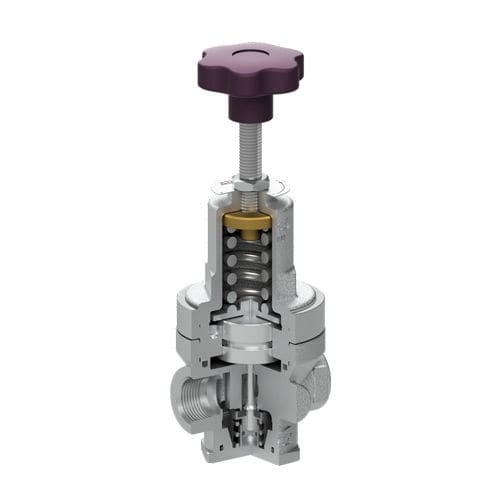

The ADCA PRV31SS is a series of direct acting, spring-loaded, piston sensing and balanced plug pressure reducing valves. These regulators are designed for use with compressed air, water and
other gases and liquids compatible with the construction materials and valve design.
They are suitable for pressure reducing applications at the point of use in laundry and dyeing machines, food industries, sterilizers, etc.
MATERIAL
Stainless steel
SIZES
1/2” to 1” – DN 15 to DN 25
1” to 2” – DN 25 to DN 50
CONNECTIONS
Threaded ISO 7 Rp or NPT
Flanged EN 1092-1 PN 40
Flanged ASME B16.5 Class 150 or 300
توضیحات:
Type
piston
Function
pressure-reducing
Media
for water, for compressed air
Body$
flange, threaded
Applications
for industrial applications
Material$
stainless steel
Associated function
reducing
DN
Min.: 15 mm(0.591 in)Max.: 25 mm(0.984 in)
Pressure
Min.: 3 bar(43.5 psi)Max.: 50 bar(725.2 psi)
Temperature
80 °C(176 °F)
Flow rate
Min.: 3 l/min(0.79 us gal/min)
