نام محصول:

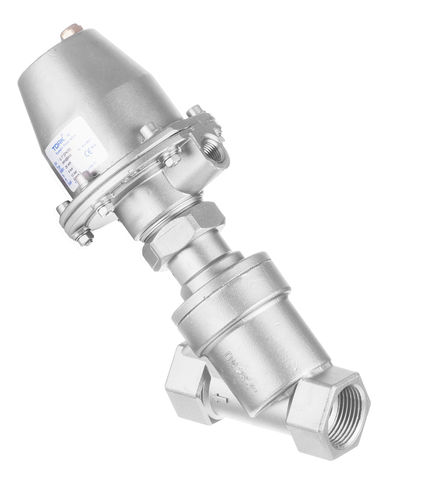

شیر پیستون
نام انگلیسی:
Piston valve PP1020 and PP1021 Series
برند:
SMS-TORK
مشخصات:
GENERAL DETAILS
Application
Water, Air, Steam, Gas, natural gas, Chemicals, Petroleum products, Food, Pharmaceutical products, Sterilization, Water treatment, Dyeing, Cleaning plants, Aggressive gases and liquids, Vacuum application, Oil, Petrol, Alcohol, Hydraulic liquids, Salt solutions, Organic solvents, Acids
PP1020 Series Normally Closed ; PP1021 Series Normally Open
Advantage of TORK Pneumatic Piston Valves
● Less pressure drop than the globe valves
● Short open-close time
● High flow rate
● Body and actuator in AISI 316 stainless steel, precision casting
● Flanged and welding connection available on request
Type – : Pneumatic Actuated Angle Seat, Piston Valve
Connection – :Screwed G (BSP) , 1/2″…2″
Function – : Normally Closed
Working Temperature – :-10 … +180°C
Max. Operating Pressure: 16 bar
Recommended Control Air Supply: 4-6 bar
Air Supply Connection – : 1/4″ G
Body – : All body AISI 316 stainless steel
Sealing Material – : PTFE (optional Viton, EPDM)
On Request: – NPT screwed connection
Way – : – 2/2 way
توضیحات:
Type
piston
Operation
pneumatically-operated
Function
for control
Media
for steam
Body$
threaded, angle seat
Number of channels
2/2 way
Pressure
16 Pa(0 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 180 °C(356 °F)
