نام محصول:

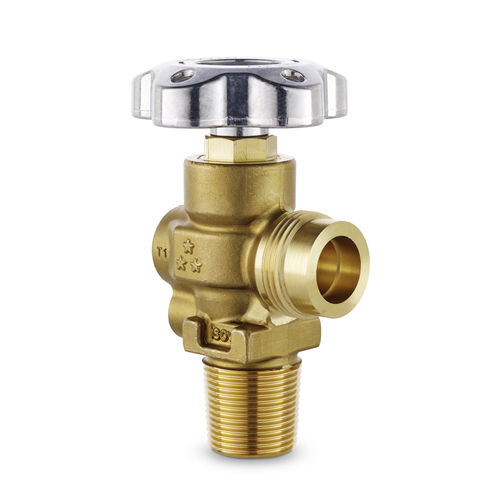

شیر پیستون
نام انگلیسی:
Piston valve RPV Gen5
برند:
Rotarex
مشخصات:
Key advantages
– Increase your flow capacity thanks to high Cv value up to 0.7
– Bigger stroke of Residual Pressure Device (RPD) piston (up to 7mm)
– Improve your productivity
– Fit to all existing RPV connections and common industrial gases
– Piston stroke (Residual Pressure Device (RPD) Displacement up to 7 mm) enhancing to cover all range of pin length
– Compatible with automatic filling station
– Oxygen pressure surge tested at 380 bar
– Robust & compact patented design up to 315 bar (4000 cycles tested)
– Excellent gasket resistance up to 60 blow downs
– New handwheel design with integrated rupture safety
– Easy guard replacement during maintenance thanks to the compact design
توضیحات:
Type
piston
Operation
with handwheel
Media
for oxygen, for CO2, for inert gases
Applications
industrial
Associated function
for filling applications
Other characteristics
compact
Pressure
315 bar(4,568.7 psi)
Temperature
Min.: -40 °C(-40 °F)Max.: 65 °C(149 °F)
