نام محصول:

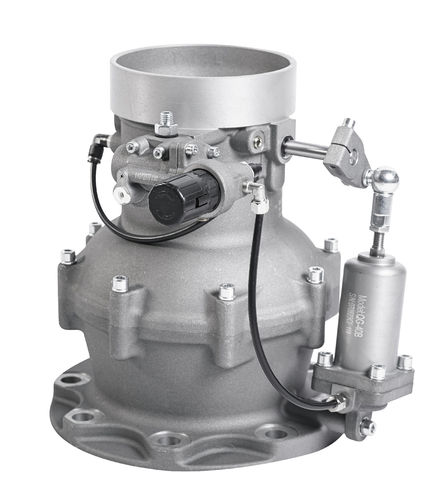

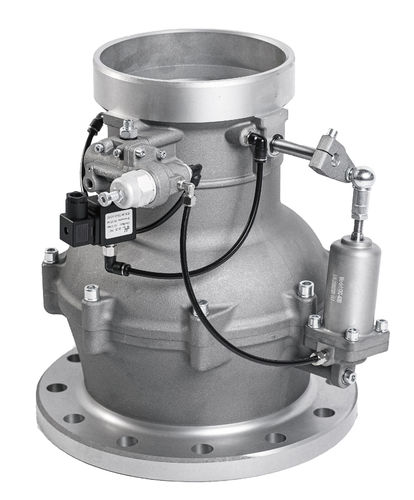

شیر پیستون
نام انگلیسی:
Piston valve RSJ
برند:
RedStar AirCompressor Parts Manufacturing Co., Ltd.
مشخصات:
1. Normally closed intake valve, controls pressure input, and opens the intake valve;
2. The entire intake valve adopts a piston type check structure, which will not spray oil during emergency shutdown conditions;
3. The intake valve can be equipped with an optional unloading and air replenishment function, effectively eliminating cavitation noise generated by the main engine;
4. The intake valve integrates a relief valve, a makeup valve, and an inverse proportional valve, with standard accessories: solenoid valve and filter.
توضیحات:
Type
piston
Operation
pneumatic
Function
shut-off, pressure-control
Media
for oil
Body$
flange
Applications
for compressors
Associated function
unloading, spray
Other characteristics
standard, normally closed, emergency, proportional
DN
120 mm, 160 mm(4.724 in, 6.299 in)
Pressure
15 bar(217.6 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 120 °C(248 °F)
Flow rate
Min.: 16 m³/min(565.03 ft³/min)Max.: 45 m³/min(1,589.16 ft³/min)
