نام محصول:
شیر پیستون
نام انگلیسی:

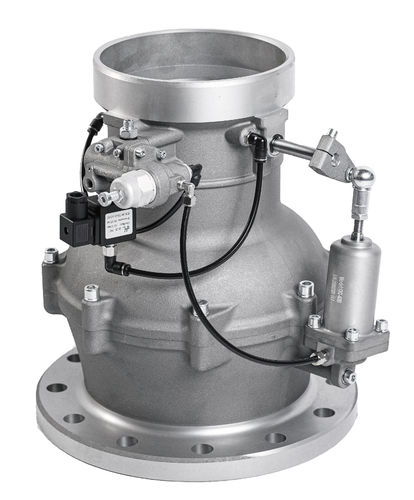

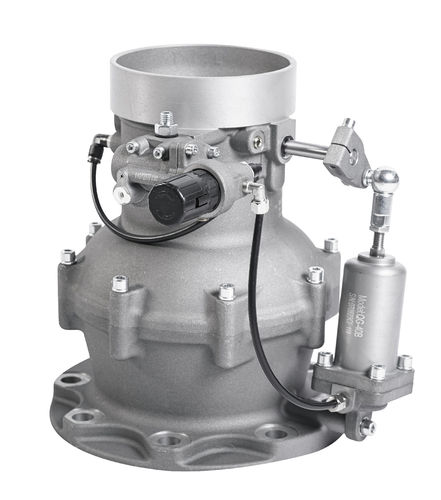

Piston valve RSJ
برند:
RedStar AirCompressor Parts Manufacturing Co., Ltd.
مشخصات:
1. Normally closed intake valve, controls pressure input, and opens the intake valve;
2. The entire intake valve adopts a piston type check structure, which will not spray oil during emergency shutdown conditions;
3. The intake valve can be equipped with an optional unloading and air replenishment function, effectively eliminating cavitation noise generated by the main engine;
4. The intake valve integrates a relief valve, a makeup valve, and an inverse proportional valve, with standard accessories: solenoid valve and filter.
توضیحات:
Type
piston
Operation
pneumatic
Function
shut-off, pressure-control
Media
for oil
Body
flange
Applications
for compressors
Associated function
unloading, spray
Other characteristics
standard, normally closed, emergency, proportional
DN
120 mm, 160 mm(4.724 in, 6.299 in)
Pressure
15 bar(217.6 psi)
Temperature
Max.: 120 °C(248 °F)Min.: -20 °C(-4 °F)
Flow rate
Max.: 45 m³/min(1,589.16 ft³/min)Min.: 16 m³/min(565.03 ft³/min)
