نام محصول:
شیر پیستون
نام انگلیسی:

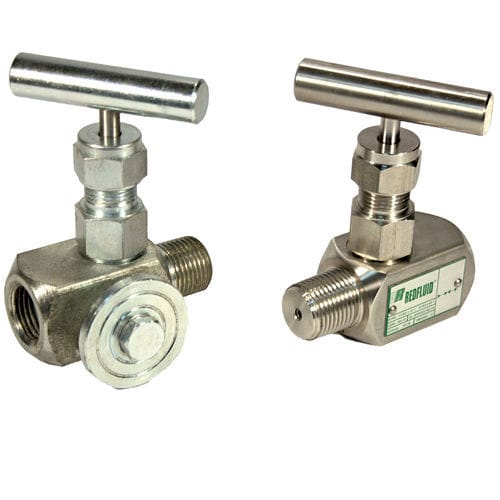

Piston valve 90 series
برند:
Redfluid SL
مشخصات:
Our Pressure Gauge series valves are flow regulation valves that isolate pressure gauges, purges, pressure switches and other instrumentation devices. They allow flow to enter the instrument without damaging it smoothly. If they have a bleeder plug, it will allow to drain the fluid and depressurize the instrument without affecting the process where it’s connected.
We have standard versions, Male-Female, Female-Female Loca Nut, with purge and with check flange for standard pressure gauge. They can work up to 400 bar.
Connections
NPT (ASME B1.20.1), BSP or Cylindrical GAS ISO 228 and connection for registration to M20x1.5.
Special connections for pressure gauges
EN 837-1 (DIN 16288 Form B or DIN 16288 Form Z); DIN 16283; DIN 16284
Materials
Carbon Steel, 316 / 316L Stainless Steel, Brass. Upon request, they can be manufactured in Duplex, Super duplex, Hastelloy, Monel among others.
Packing
GRAFOIL or PTFE. Upon request, it can be supplied in other materials.
We manufacture different types of GAUGES VALVES:
Option with purge
Option with check flange with sealing plug to fit a standard pressure gauge.
Option with M20x150 test bore
Pneumatic piston valve.
Benefits
Pressure gauge series valve: The valve isolates pressure gauges, purges, pressure switches and instrumentation, allows the flow to enter the instrument smoothly without damaging it. It reduces the costs of calibration and preventive maintenance of the instrumentation, allowing a smooth entry of the flow to the pressure gauge.
توضیحات:
Type
piston
Operation
manual
Function
isolation, purge, drain, flow regulator
Body$
female, female-female, male-female, male
Applications
for liquids, instrumentation, for pressure gauges
Material$
brass, Hastelloy®, stainless steel, carbon steel
Associated function
calibration
Other characteristics
ISO, standard, DIN, pneumatic piston
DN
Min.: 0.25 inMax.: 0.5 in
Pressure
Min.: 0 bar(0 psi)Max.: 440 bar(6,381.7 psi)
Temperature
Min.: -29 °C(-20 °F)Max.: 38 °C(100 °F)
