نام محصول:
شیر پیستون
نام انگلیسی:

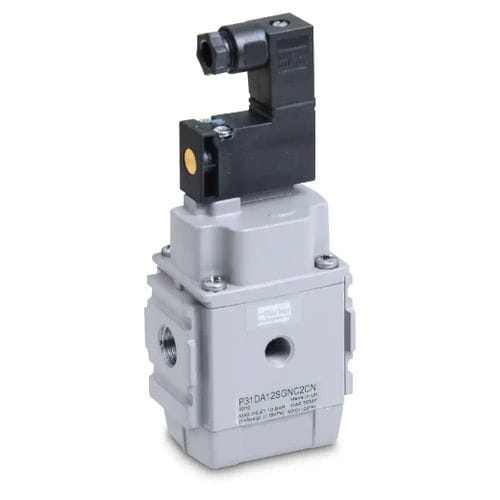

Piston valve P31S series
برند:
Parker Pneumatic Division Europe
مشخصات:
P31S modular global mini soft start valves provide for the safe introduction of pressure to machines or systems. They allow the pressure to gradually build to a set point before fully opening to deliver full air line pressure. The controlled introduction of pressure can be an important safety factor and prevent damage to tooling when the air pressure is introduced at machine or system start up. When pressure is supplied to the inlet port, gradual filling of the downstream system occurs through the adjustment needle valve. The piston opens the main valve when the downstream side of the valve reaches approximately 60% of the supply pressure. The ramp up time to reach the switch-over pressure is adjustable via the needle valve in the cover.
Note: soft start valves are not intended to be used as emergency shut-off valves, but should be placed after a manual shut off valve. The P31S global soft start can be mounted using a modular connector to other P31 global air preparation products.
Markets
• Appliances
• Entertainment Automation
• Factory Automation
• Misc. Manufacturing
• Molding
• Packaging Machinery
• Printing and Marking Equipment
• Vehicle Assembly Facilities
• Wearing Apparel
• Food and Beverage
• Misc. Processing
Features/Benefits
• Modular design with 1/4″ integral ports (NPT, BSPP & BSPT)
• The 2-way, 2-position function provides for the safe introduction of pressure
• Adjustable slow start
• Solenoid or air pilot options high flow
Applications
To be used in combination with valves and cylinders main function to protect and as safety device in
• Positioning
• Cutting
• Machining
• Pick and place
• Packaging and wrapping systems
توضیحات:
Type
piston
Operation
manual, electrically-actuated
Function
pilot, adjustment, shut-off
Body$
modular, in-line
Applications
for industrial applications, for machine tools, food
Number of channels
2-channel
Associated function
filling, soft-start
Other characteristics
emergency, integral, ATEX
DN
0.25 in
Pressure
Min.: 3 bar(43.5 psi)Max.: 10 bar(145 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 50 °C(122 °F)
