نام محصول:
شیر پیستون
نام انگلیسی:

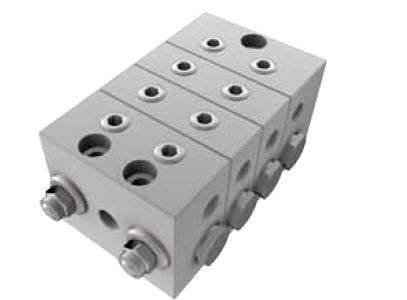

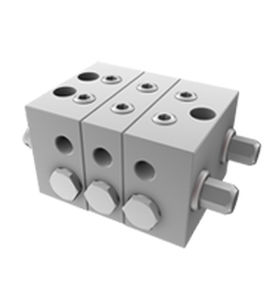

Piston valve DPA
برند:
I.L.C. srl
مشخصات:

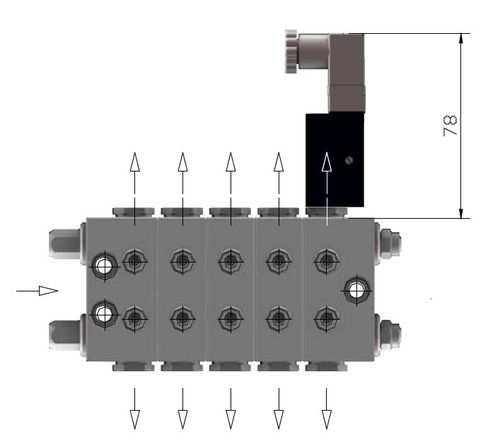

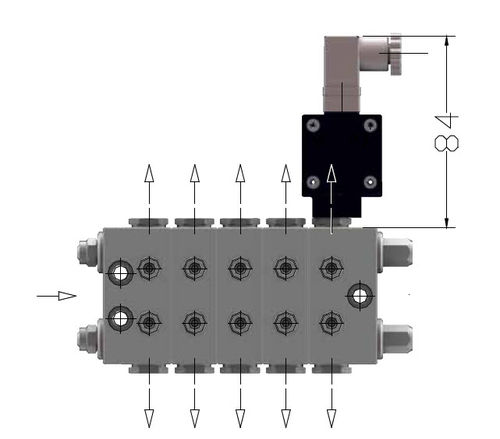

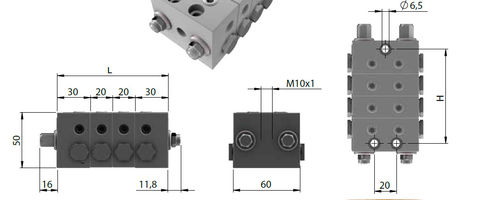

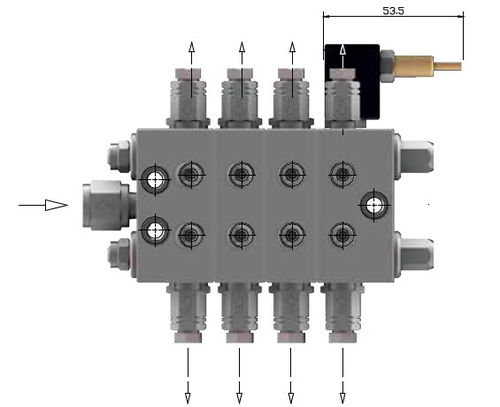

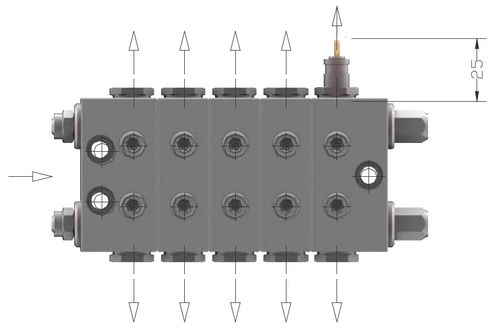

DPA PROGRESSIVE DIVIDERS
LUBRICANT DISPENSING SEQUENCE
The initial piston dispenses lubricant to the outlets corresponding to the final piston. The final piston dispenses lubricant to
the outlets corresponding to the central piston or, if more than one, to the outlets corresponding to the closest intermediate
piston. The intermediate piston dispenses lubricant to the outlets corresponding to the initial piston. The metering pistons
in the DPA progressive dividers do not dispense the pre-established lubricant to the corresponding outlet but based on a
set circuit sequence.
توضیحات:
Type
piston
Media
for oil
Body$
in-line, double
Applications
for centralized lubrication systems
Pressure
Min.: 15 bar(217.6 psi)Max.: 300 bar(4,351.1 psi)
Temperature
Min.: -20 °C(-4 °F)Max.: 100 °C(212 °F)
