نام محصول:
شیر پیستون
نام انگلیسی:

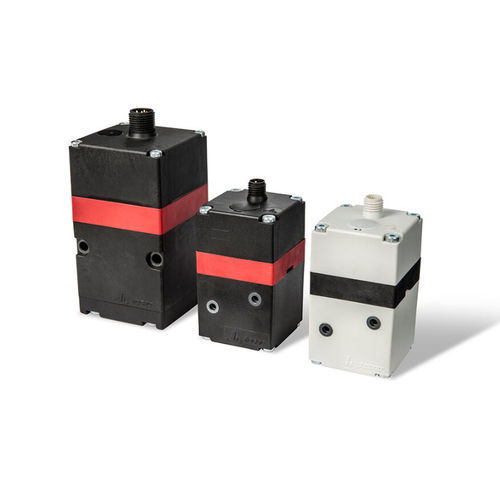

Piston valve tecno series
برند:
HOERBIGER Automatisierungstechnik GmbH
مشخصات:
The basic component for many medical technology applications
Extremely low, electrical power consumption (no self-heating)
Control from 0 bar (vacuum version available)
High pressure control stability
The piezo-controlled proportional valves of the Tecno series are 3-way pressure valves and have an integrated electronic pressure control as well as a pressure sensor at the output. This allows a pneumatic output pressure to be controlled as a function of an electrical control signal (setpoint). The pressure sensor measures the current output pressure, while the electronics regulate it with high accuracy and dynamics – at low power consumption. This enables process-dependent pressure adjustment via a plant control system.
HOERBIGER manufactures the Tecno valves automatically on precision equipment in a clean room environment. Only high-quality materials are used. One hundred percent initial testing and careful calibration of all components as well as the traceability of all manufacturing and testing processes provide the user with security.
The product portfolio comprises three variants.
Advantages of Tecno valves
Dynamic and precise control
Customized pressure control ranges possible
Extremely low electric power consumption
Free of self-heating and waste heat
Reliable base component for a wide range of medical technology applications
Control starting at 0 bar (vacuum version available)
Very high pressure control stability
Virtually infinite resolution
Battery operation possible
Lightweight and compact design of the control valve
Tecno easy is the entry-level variant of HOERBIGER’s product portfolio of piezo-controlled proportional valves.
توضیحات:
Type
piston
Operation
piezoelectric
Function
for control
Body
flange, IP65
Applications
for medical applications
Number of channels
3-way
Other characteristics
compact, high-pressure, high-performance, proportional
Pressure
Max.: 8 bar(116 psi)Min.: 0 bar(0 psi)
Flow rate
350 l/min, 1,600 l/min(92.46 us gal/min, 422.68 us gal/min)
