نام محصول:
شیر پیستون
نام انگلیسی:

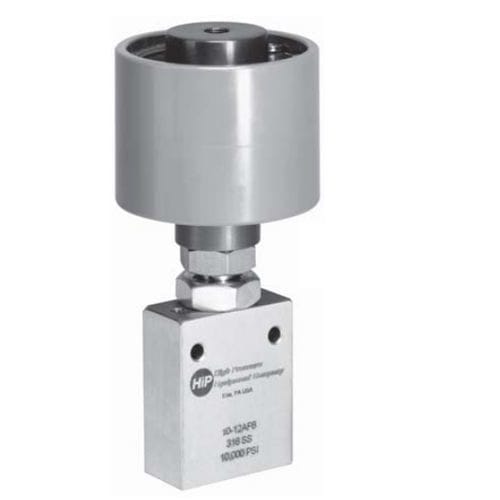

Piston valve F series
برند:
HIP
مشخصات:
Mini-Hippo Air Operators are available for both normally open service (spring to open/air to close) and for normally closed service (air to open/spring to close). These piston air operators provide remote automatic on/off operation of valves and can be controlled by means of an air regulator, an electrical solenoid, or a manual low pressure valve in the user’s air supply line. Air inlet is 1/8″ NPT. Air pressure requirement ranges from 50 to 90 psi.
The Mini-Hippo air operators may be supplied with the valves and operating pressures shown in table.
To order simply specify catalog number of valve and type operation required.
EXAMPLES:
30-11HF4-MHNC (normally closed)
10-12AF6-MHNO (normally open)
10-15AF4-MHNO-MHNC (normally open/normally closed)
توضیحات:
Type
piston
Operation
manual
Media
for air
Other characteristics
normally closed, automatic, low-pressure, normally open
Pressure
Min.: 0 psiMax.: 6,000 psi
Temperature
Min.: -423 °F(-253 °C)Max.: 1,200 °F(649 °C)
