نام محصول:
شیر پیستون
نام انگلیسی:

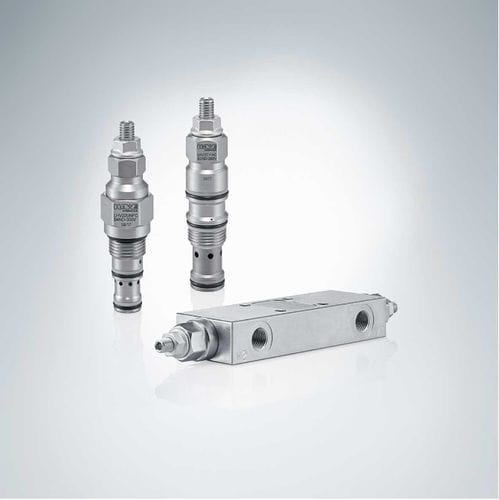

Piston valve CLHV series
برند:
HAWE Hydraulik SE
مشخصات:
The load-holding valve type CLHV is suitable for applications with low and medium tendencies to oscillate and is used especially in connection with proportional directional spool valves, e.g. types PSL and PSV.
It is also available with return pressure compensation and spring chamber relief.
As a screw-in valve, type CLHV-C can either be installed at the manifold, in the pipe, or directly at the cylinder or hydraulic motor.
Type CLHV-PIB can either be installed in the pipe or directly at the cylinder or hydraulic motor.
Features and advantages
Four sizes
Various adjustment options
Various types of relief
Various models
Intended applications
Cranes
Construction machines
Lifting devices
Agricultural machinery
توضیحات:
Type
piston
Operation
hydraulically-operated
Function
adjustment, pressure-control
Body$
screw-in, manifold
Applications
for motors, for cylinders
Material$
medium
Associated function
balancing, load
Other characteristics
proportional
Pressure
350 bar(5,076.3 psi)
Temperature
Min.: -40 °C(-40 °F)Max.: 80 °C(176 °F)
Flow rate
30 l/min, 75 l/min, 150 l/min, 320 l/min(7.93 us gal/min, 19.81 us gal/min, 39.63 us gal/min, 84.54 us gal/min)
