نام محصول:
شیر پیستون
نام انگلیسی:

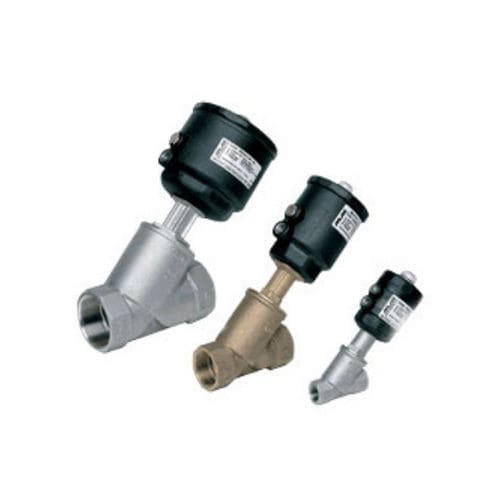

Piston valve BPG2 series
برند:
Genn Dih
مشخصات:
Kao Lu Agency UK SPIRAX SARCO Group specially designed 2/2 off valve and Y-type steam valve specialist M & M.
Y-type steam valve for a variety of fluids such as water, oil, air, steam, and other corrosive fluids. Liquid temperature of -10 ° C ~ 180 & deC; PTFE Teflon o – Seal; valve body AISI316L stainless steel; a vacuum degree of 10-2mbar; maximum working pressure vapor 10bar.
Body Material: AISI316L stainless steel
O Seal: PTFE Teflon
توضیحات:
Type
piston
Operation
electric
Media
for water, for steam
Applications
liquids, vacuum
Material$
PTFE, stainless
Number of channels
2/2-way
Fluid specification
for aggressive media
Other characteristics
normally closed, bidirectional, for aggressive media
DN
Min.: 15 mm(0.591 in)Max.: 50 mm(1.969 in)
Pressure
Min.: 0 bar(0 psi)Max.: 16 bar(232.1 psi)
Temperature
Min.: -10 °C(14 °F)Max.: 180 °C(356 °F)
Flow rate
Min.: 87 l/min(22.98 us gal/min)Max.: 950 l/min(250.96 us gal/min)
