نام محصول:
شیر پنوماتیک

نام انگلیسی:

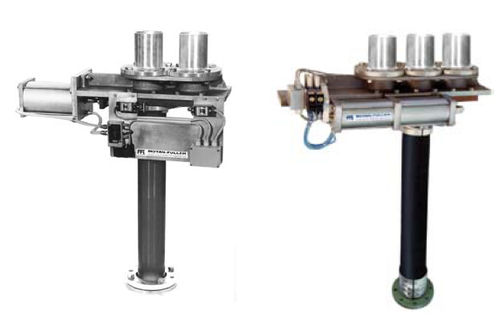

Pneumatically-operated valve ZWS/DWS series

برند:
Zeppelin Silos & Systems

مشخصات:
Applications
The two-/three-way hose-type diverter valve ZWS/DWS is a distribution or collection unit for pneumatic conveying systems up to 4 bar (g) of powders and pellets in various industrial sectors.

Design characteristics
Auto-tight seal, pressure tight up to 4.0 bar (g)
Standard hose up to 0.8 bar (g), special hose up to 4.0 bar (g)
Temperature range -10 to +80°C
Design according to ATEX 2014/34/EU
Maintenance-free, extensive lifetime
Housing and slide plate made of cast aluminium, slide plate is hard coated and PTFE lined
Parts in contact with the product are made of stainless steel
Electro-pneumatic equipment fully assembled and wired to main terminal
With protection hood

Options:
– Highly anti-abrasive distributor hose
– Metal hosing
– High temperature version

توضیحات:
Operation
pneumatically-operated

Function
diverter, distribution

Applications
industrial

Material$
PTFE

DN
Min.: 50 mm(1.969 in)Max.: 225 mm(8.858 in)

Pressure
Min.: 0.8 bar(11.6 psi)Max.: 4 bar(58 psi)

Temperature
Min.: -10 °C(14 °F)Max.: 80 °C(176 °F)
