نام محصول:
شیر پلاگین مخروطی
نام انگلیسی:

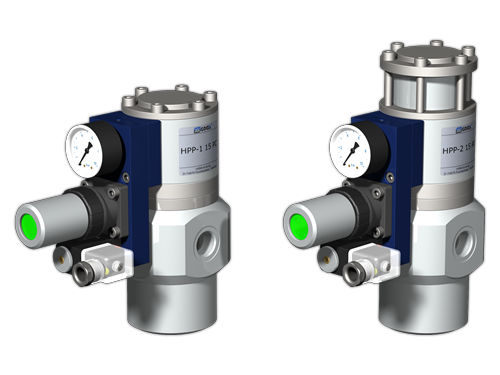

Conical plug valve HPP-1 15 PC, HPP-2 15 PC
برند:
Müller co ax GmbH
مشخصات:
characteristics
ports HPP-1 with valve body G 1/2 – G 3/4, HPP-2 with valve body G 1/2 – G 3/4
media gaseous – liquid – highly viscous -, contaminated
operating time ms < 200
media temperature °C 0 to +60
ambient temperature °C 0 to +50
approvals
mounting
power consumption DC 4,8 W, AC pick up 11,0 VA holding 8,5 VA
energized duty rating ED 100%
connection plug acc. DIN EN 175301-803 form B
additional equipment illuminated plug with varistor
optional M12x1 connector acc. DESINA
coil 3 positions x 90° / wire diameter 6-8 mm
توضیحات:
Type
conical plug
Function
pressure-control
DN
15 mm(0.591 in)
Pressure
Min.: 5 bar(72.5 psi)Max.: 100 bar(1,450.4 psi)
Temperature
Min.: 0 °C(32 °F)Max.: 60 °C(140 °F)
Flow rate
6 m³/h(211.89 ft³/h)
