نام محصول:
شیر نمونه گیری
نام انگلیسی:
Sampling valve
برند:
Wenzhou Lihong Machinery TECHNOLOGY Co., LTD
مشخصات:

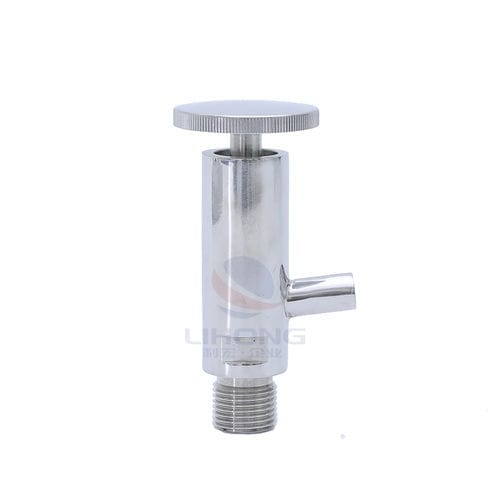

Sanitary Stainless Steel Sampling Valve
Material quality: SS304, SS316L
Standard: DIN, SMS, etc
Size: DN15-150 or 1″-6″,
Applied in the stainless steel pipeline system
The sampling cock is a valve used to get product sample in the piping system or equipment, at many situation, people need to do chemical analysis to the product, then the specialized sampling cock is used.
The double open type sampling cock is more commonly used type, it is normally made up of two ball valve, its characteristic is safe sampling and steady. During the sampling progress, first of all, close the A valve which is near the equipment(or piping system), then open B valve, to let the product go to space between the two valves, then close B valve and open A valve, put the sampling vessel at sampling hole to get the product sample.
Connecting Ends – Threaded, clamped
Available Sizes – 1/4″, 3/8″, 1/2″, 3/4″
Metal Material – Parts in contact with fluid – 304, 316L
Other parts – 304
Seal Material – Options – PTFE/Silicone, PTFE/EPDM, PTFE/NBR
Pressure – Max. working pressure – 10 bar
Surface Finish – Internal surface – Ra < 0.8 μm
External surface – Options: bright, satin, grit blast
Applications: – Sample valve is mainly used to tank equipments or inside pipeline for sample collection, and also can be installed in the lowest point of the tank or pipeline for draining residual fluid.
توضیحات:
Type
disc bottom
Operation
manual
Function
sampling
Media
for water, for solvents, for liquid food products and beverages
Body
flange, threaded, weld, welded, stainless steel
Applications
for the food industry, clamp, for pipelines, for the pharmaceutical industry, beverage, for tank, sanitary, food, for dairy products, for pharmaceutical products
Number of channels
2-channel
Fluid specification
for low-viscosity fluids
Other characteristics
ISO, DIN, standard
DN
0.5 mm, 6.426 mm, 50 mm(1.969 in)Max.: 150 mm(5.906 in)Min.: 25 mm(0.984 in)
Pressure
Max.: 1 MPaMin.: 0 MPa
