نام محصول:
شیر نرم
نام انگلیسی:

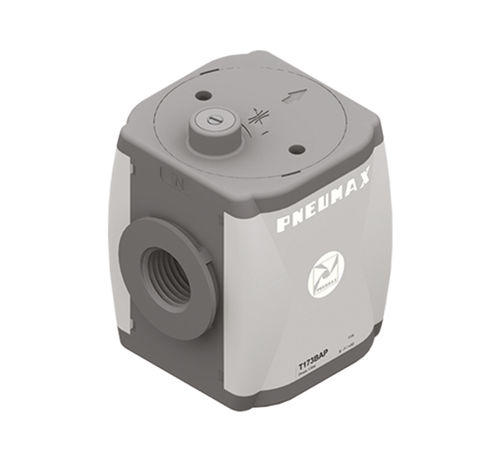

Soft-start valve Airplus
برند:
PNEUMAX
مشخصات:
• Progressive start-up valve
• Available in 4 sizes with flow rates up to 15000 Nl/min and connections from 1/8” to 1”
• Suitable for downstream system gradual pressurization
• Downstream circuit filling time regulated via a built in flow regulator
• Full pressure is allowed once the down stream circuit pressure reaches 50% of the inlet pressure
• Atex certification (II 2GD or II 3GD)
توضیحات:
Type
piston
Operation
pneumatically-operated
Function
flow control, adjustment
Media
for compressed air
Material$
aluminum
Associated function
soft-start
Other characteristics
compact, high-performance, ATEX
DN
Min.: 0.125 inMax.: 1 in
Pressure
Min.: 2.5 bar(36.3 psi)Max.: 13 bar(188.5 psi)
Temperature
Min.: -5 °C(23 °F)Max.: 50 °C(122 °F)
Flow rate
Min.: 75 l/min(19.81 us gal/min)Max.: 15,000 l/min(3,962.58 us gal/min)
