شیر نرم – Bimba – Soft-start valve MGV series

مقایسه

فهرست علاقه مندی ها

دسته: بدون دسته‌بندی

تامین شده از فروشگاه Enayati

مشاهده نظرات محصول

توضیحات
نظرات (0)
Shipping & Delivery

توضیحات

نام محصول:
شیر نرم

نام انگلیسی:

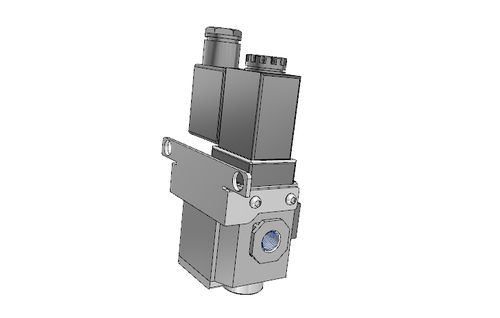

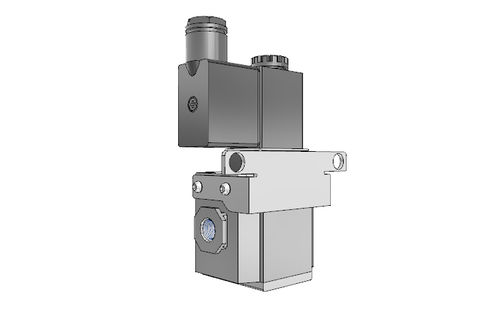

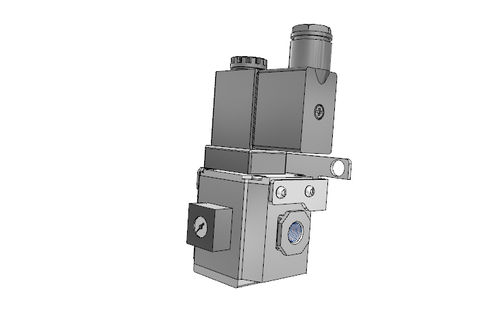

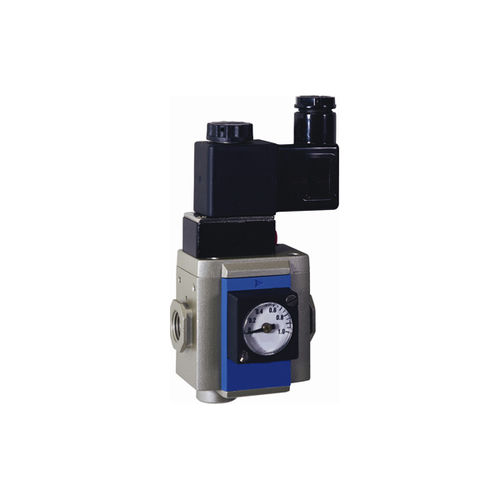

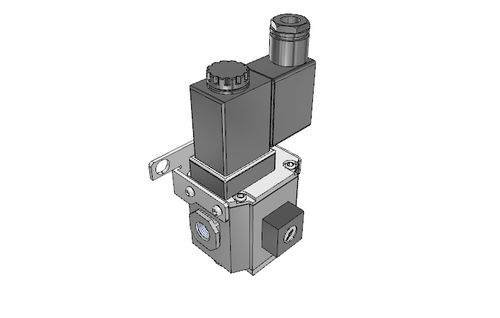

Soft-start valve MGV series

برند:
Bimba

مشخصات:
Soft-start valves allow pneumatic components to be pressurized slowly for safety and control. MGV series soft-start valves are available with port sizes from 1/8″ NPT to 1/2″ NPT and either 24 VDC or 120 VAC solenoids. Start speeds are adjustable and a mounting bracket and integrated gauge are included. Available with DIN/LED connector or explosion proof coil.

• Type: Solenoid operated, 3/2 soft-start
• Proof pressure: 215 PSI
• Voltage: 24 VDC or 120 VAC
• Class B insulation

توضیحات:
Type
diaphragm

Operation
pneumatically-operated

Function
for control

Media
for air

Applications
gauge, coil, LED

Material$
aluminium, alloy

Number of channels
3/2-way

Associated function
soft-start

Other characteristics
DIN

DN
Min.: 0.125 inMax.: 0.5 in

Pressure
Min.: 35 psiMax.: 130 psi
